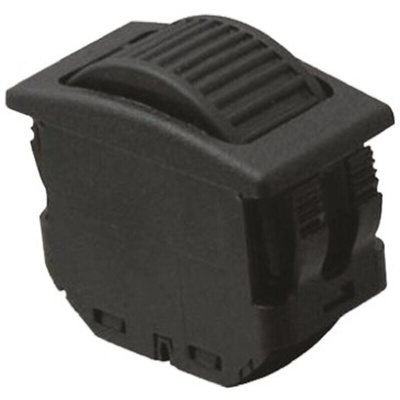

HTWM-1H11B22, Otto IP68S Through Hole Thumbwheel Switch Thumbwheel, Переключатель

Otto HTWM Series - Hall Effect Thumbwheel

The HTWM offers the same performance as the HTW proportional thumbwheel but with a much shorter behind panel depth. Available with four output options, the HTWM offers a self-centre, single axis thumbwheel actuator that provides linear change in voltage output in either direction from centre. Options include increasing or decreasing voltage output from the centre position to the full travel position, and single or dual (redundant) outputs per axis. The HTWM offers snap-in style mounting and a 3 million cycle rotational life. The HTWM electronics are sealed to IP68S and have excellent EMI/RFI immunity ideal for use in grip, armrest and panel applications.

Hall Effect contact-less sensing technology
Self-centre single axis actuator
Rocker switch style mounting, snaps into 34.03 x 17.78mm panel cut-out
Behind panel depth: 24mm
Operating force: 0.5lb
Black bezel and wheel
IP68 sealed
Excellent EMI/RFI immunity
Pre-wired versions are terminated with 450mm long 18AWG wires with stripped ends
Pin versions are terminated with 0.635mm square pins

Mini proportional output thumbwheel HTWM Series
