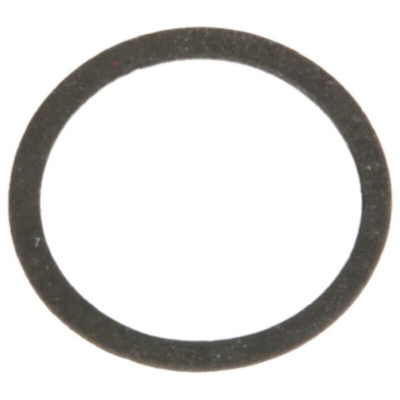

Otto Push Button Panel Seal for use with P9 Series, 700110

Otto P9 Series - White Body Push Button Switch

Momentary action P9 series push button switches feature a contoured dome style push button in either a low button profile or a high button profile with a threaded case for hex nut mounting and a short behind panel depth of approximately 12mm. At a full rated load of 5 amps resistive or 3 amps inductive the P9 life is approximately one million mechanical operations with an electrical life of 25,000 operations. The P9 series has a low contact resistance for low level switching capability as well as being a precision designed switch for use in panels, control grips, computers, instruments, heavy equipment and other demanding applications where attractive rugged push button switches are required.

White bezel and body with a choice of flush and raised dome button cap styles
Choice of button cap colours
Sealed to IP64
Wiithstands extreme shock & vibration
Positive tactile feedback contact transfer
15/32-32 threaded body

Note

For black body versions see stock number 433-3168 typically.
For panel sealing use gasket stock number 737-3863.

Approvals

UL; CSA

Warning
type":"Warning",

700110

O-ring - for Otto P9 switches Drawing
