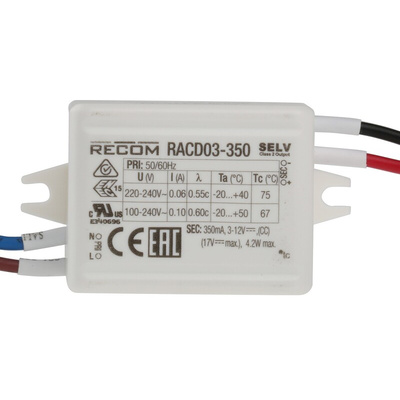

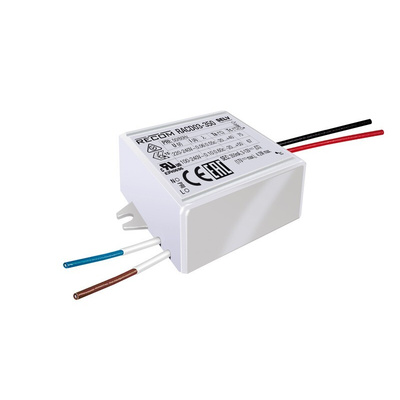

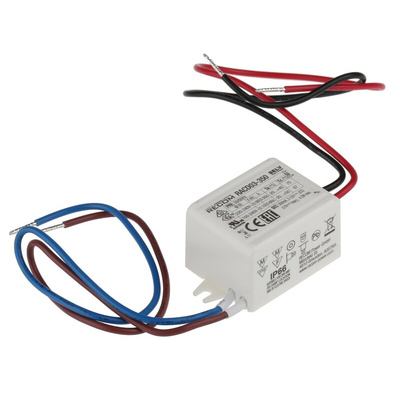

RACD03-350, Recom LED Driver, 3 → 15V dc Output, 3W Output, 350mA Output, Constant Current / Constant Voltage, Драйвер светодиодов

RECOM LED Driver, 90 to 264V AC Input Voltage, -20°C to +50°C Operating Temperature Range - RACD03 Series - RACD03-350

To safely and reliably power your lighting system, choose this LED driver from RECOM. It's designed to change inputs from AC mains to a stable energy supply and provide LEDs with either a constant current or constant voltage. In the CC setting, this versatile unit supplies 350mA and a variable output between 3 and 12VDC for high-power applications. The CV mode offers 15V DC and between 0 and 300mA for use with strip lights.

Features & Benefits

• 72% efficiency indicates low energy loss through heat production
• Broad operating humidity range between 5 and 85% for use in areas with high levels of non-condensing water vapour
• Light 45g weight puts minimal strain on your system
• IP66 rating means it's dust-proof and protected from high-pressure water jets
• Dimensions of 52.1 (L) x 29.6 (W) x 23.1mm (H) for discreet installation in small spaces

Applications

• Outdoor displays
• Landscape lighting
• LED flex strips

How many lights can this unit power?

This device is designed to drive between one and six high-powered LED lights.

Recom - Constant Current LED Power Supply

Datasheet

Guide to Buying LED Drivers
