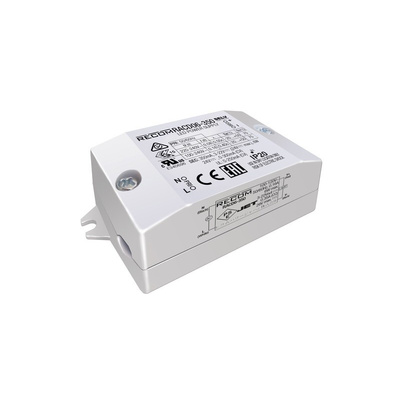

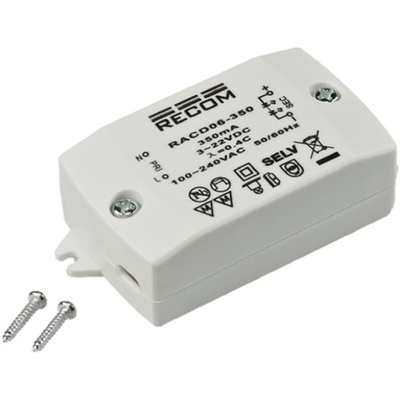

RACD06-350, Recom LED Driver, 3 → 24V dc Output, 6W Output, 350mA Output, Constant Current / Constant Voltage, Драйвер светодиодов

RECOM LED Driver, 6W Maximum Output Power, 350mA Current Rating - RACD06 Series - RACD06-350

This driver from RECOM can regulate up to 12 high-power LEDs, maintaining a steady 350mA current for consistent brightness throughout the circuit. It's compatible with an input voltage of either 120 to 370V DC or 90 to 264V AC, giving you the flexibility to connect it to most low-voltage supplies. With built-in protection against overloads, short circuits and overvoltage, this component extends the service life of your bulbs and prevents lighting failures caused by faults. It also monitors the temperature of your system, shutting the circuit down if it overheats and automatically restarting it once it's cooled down.

Features & Benefits

• IP20-rated plastic housing is protected against dust and objects over 12mm
• LED supply located under removable top cover for ease of accessibility
• Screw terminals for quick, secure connection to input power
• 3.75kV AC isolation rating indicates that the unit won't fail even when high voltages are applied

Applications

• Architectural and industrial lighting
• Large household appliances
• Commercial lighting

Does this component provide constant voltage or constant current?

This versatile device has both constant voltage and constant current output functions. Constant current ensures consistent brightness and protects against thermal runaway, while constant voltage enhances efficiency.
