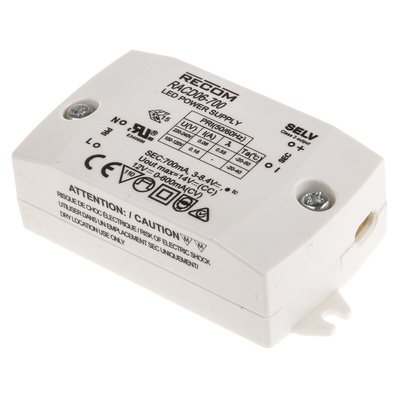

RACD06-700, Recom LED Driver, 3 → 12V dc Output, 6W Output, 700mA Output, Constant Current / Constant Voltage, Драйвер светодиодов

RECOM LED Driver, 264V AC Maximum Input Voltage, 1 Output - RACD06 Series - RACD06-700

Do you need a flexible power source to supply and regulate the flow of electricity in your system? Pick this constant current and constant voltage LED driver from RECOM. In the initial phase, it operates in CV mode to deliver power, then it switches to CC to maintain electricity flow in the circuit. These functions make it versatile and useful in a wide range of applications, from residential lighting systems to scrolling LED signs. In CV mode, the device outputs a 12V DC voltage and a maximum current of 600mA, making it suitable for use with low-power to medium-power systems.

Features & Benefits

• Operating temperature range between -20°C and +40°C for use in harsh conditions
• IP20 rating means that it's touch-proof and resistant to dust or objects over 12mm in size
• Dimensions of 68 (length) x 35 (width) x 21mm (depth) for installation in setups with limited space

Applications

• LED signs
• Medical laboratories
• Automotive industry

Does this driver come with connected wires?

No, but it has screw holes for the easy mounting of cables.
