APV-12-12, MEAN WELL LED Driver, 12V Output, 12W Output, 1A Output, Constant Voltage, Драйвер светодиодов

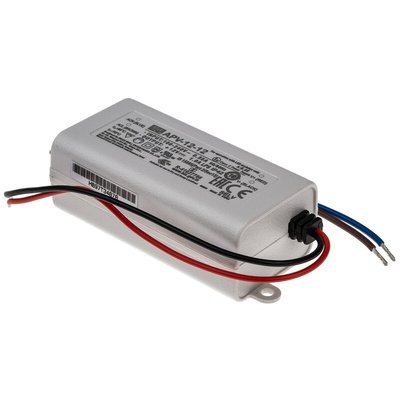

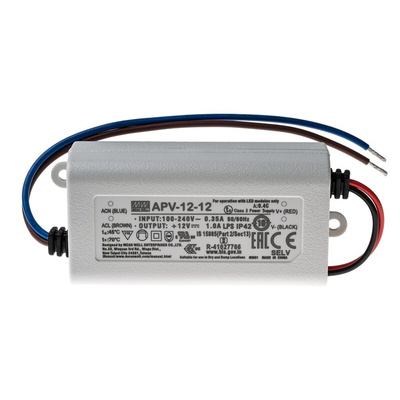

Mean Well 12W and 16W Constant Voltage LED Driver / Power Supply - APV Series

APV series 12W and 16W constant voltage LED driver / power supply with universal AC input. These low cost, highly reliable LED drivers / power supplies have a fully isolated plastic case and suitable uses include LED lighting and moving sign applications.

Full range universal AC input
Small, compact, fully isolated plastic case
Free air convection cooling
100% full load burn-in test
Short circuit, overload and over voltage protection
Pass LPS
EMC compliance to EN55022 (CISPR22) Class B, EN55015, EN61547
Harmonic current compliance to EN61000-3-2 Class A, EN61000-3-3

Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
MTBF to MIL-HDBK-217F
12W versions: Derate output above 40°C - stock number 738-1573 , above 45°C all others
16W versions: Derate output above 40°C

Standards

Design refer to TUV EN60950-1, EN61347-2-13, UL8750
