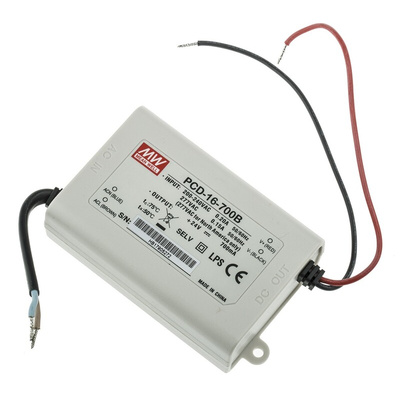

PCD-16-700B, MEAN WELL LED Driver, 16 → 24V Output, 16.8W Output, 700mA Output, Constant Current Dimmable, Драйвер светодиодов

Mean Well 16W & 25W Dimmable Constant Current LED Driver / Power Supply - PCD Series

PCD series 16W and 25W constant current dimmable LED drivers / power supply with AC phase cut dimming and built in active PFC function. These low cost, highly reliable dimmable LED drivers / power supplies have a fully isolated plastic case and are suitable for indoor lighting applications.

AC phase-cut dimming
Work with leading edge and trailing edge dimmers
Fully isolated plastic case
Free air convection cooling
Built-in active PFC function
100% full load burn-in test
Short circuit, overload and over temperature protection
EMC compliance to EN55015 Class B
Harmonic current compliance to EN61000-3-2 Class C, EN61000-3-3

Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
MTBF to MIL-HDBK-217F
16W versions: Derate output above 50°C operating temperature
25W versions: Derate output above 40°C operating temperature

Standards

TUV EN61347-1, EN1347-2-13 approved; Design refer to UL1310 Class 2
