HLG-185-24ARS, MEAN WELL LED Driver, 24V Output, 187.2W Output, 7.8A Output, Constant Voltage Dimmable, Драйвер светодиодов

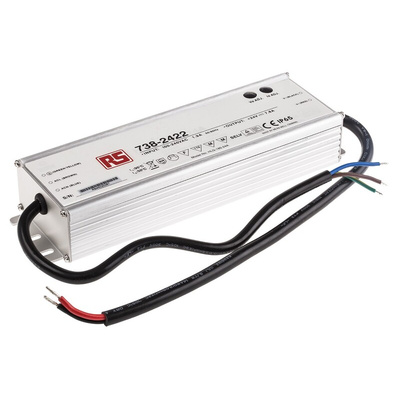

RS - 185W Dimmable IP65 Constant Current/Voltage LED Driver / Power Supply

185W, waterproof, IP65, dimmable, constant voltage, constant current, LED driver / power supply with universal AC input. These dimmable IP65 waterproof LED drivers / power supplies have a built in active PFC function and a three in one dimming function. Suitable applications for these IP65 dimmable LED drivers / power supplies include LED lighting and street lighting applications and can be used in dry, damp or wet locations.

Full range universal AC input
IP65 design for indoor or outdoor applications
Free air convection cooling
Built in active PFC function
High efficiency of up to 94%
Three in one dimming function (1 to 10Vdc or PWM signal or resistance)

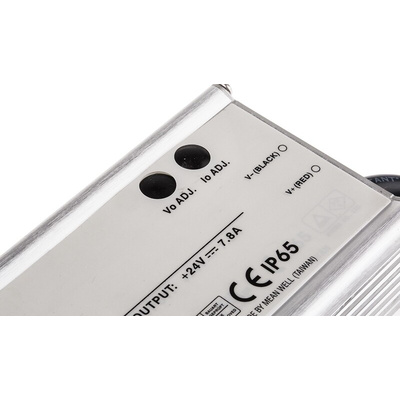

Output voltage and constant current level adjustable through an internal potential meter
Short circuit, overload, over voltage and over temperature protection
Compliance to worldwide safety regulations for lighting
EMC compliance to EN55015, EN55022 (CISPR22) Class B
Harmonic current compliance to EN61000-3-2 Class C (≥50% load) ; EN61000-3-3

Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
MTBF to MIL-HDBK-217F
Derate output above 60°C operating temperature

Standards

UL8750, EN61347-1, EN61347-2-13 independent IP65 approved ; Design refer to UL60950-1, TUV EN60950-1

Approvals

cULus, TUV
