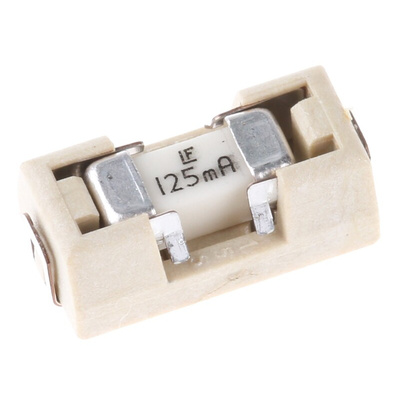

0154.125DR, Littelfuse 125mA F Non-Resettable Surface Mount Fuse, 125V, Предохранитель

7382905
Номер производителя: 0154.125DRПроизводитель: Littelfuse
Цена за шт. (норма упаковки 10 шт)
783.00 руб. (С НДС) *
Количество 10+ 100+ 500+ 1500+ 2500+
Цена 783.00 руб. 534.00 руб. 453.00 руб. 441.00 руб. 432.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

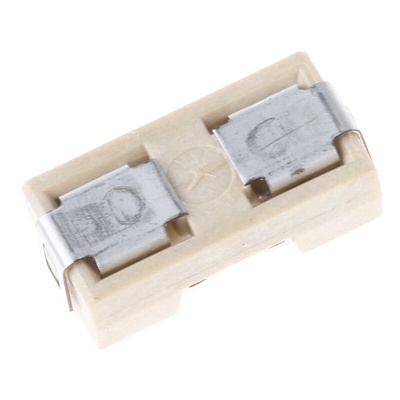

Littelfuse 154 Series OMNI-BLOK Fuse and Holder Combination

Littelfuse 154 series OMNI-BLOK fuse and holder combinations offer a convenient solution for efficient installation and easy replacement of miniature Littelfuse NANO2 surface mount fuses. The 154 series fuse and holder combination can be installed on a PC board in a single, quick, efficient step and further fuse replacement can be accomplished without exposing the PC board to the detrimental effects of solder heat. Littelfuse 154 series OMNI-BLOK's are suitable for a wide variety of applications.

Easy fuse replacement
Miniature size
Very Fast-Acting and Time-Lag options available
Holder sized to fit a range of NANO2 fuses
Low fuse temperature de-rating
Heat-resistant fuseholder
260°C reflow capable fuseholder

Approvals

CSA, UL

Approvals

UL; CSA

Surface Mount Technology

Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.

Техническая спецификация
pdfLittelfuse 154 Series OMNI-BLOK Fuse and Holder Combination
Высота:
3.81мм
Диапазон рабочих температур:
-55 → +125 °C
Длина:
9.73мм
Номинал тока:
125мА
Номинальное напряжение:
125В
Рабочая температура - максимальная:
+125°C
Рабочая температура - минимальная:
-55°C
Размеры:
9.73 x 5.03 x 3.81мм
Скорость предохранителя:
F
Ширина:
5.03мм
