051045, Wera Interchangeable Slotted; Hex-Plus; Phillips; Pozidriv; Torx Screwdriver Set 26 Piece, Набор отверток

Wera Zyklop Interchangeable Kraftform Screwdriver/Ratchet & Socket 26-Piece Set

From Wera comes the most versatile ratchet ever; the multi-functional Zyklop ratchet can replace five different ratchets and can also be used as a screwdriver, making it a 6-in-1 tool. This 26-piece set includes the ratchet itself, the screwdriver adaptor, and over 20 sockets and screwdriver bits.
Complete with Weras Kraftfrom handles, which have hard and soft zones to promote hand comfort and high-speed torque transfer.

Features & Benefits

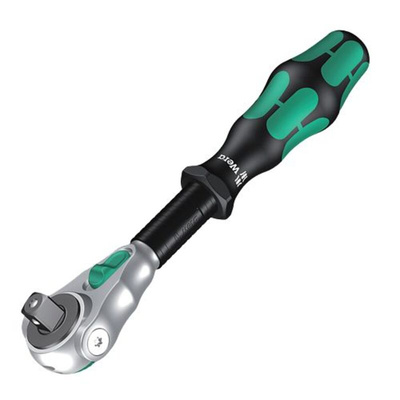

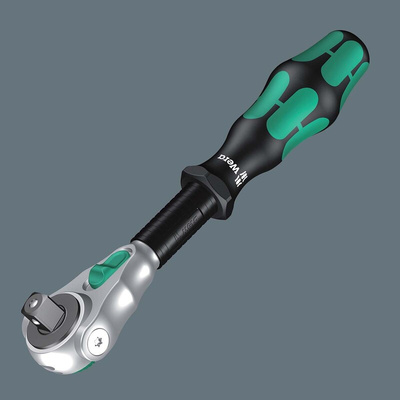

• The Wera Kompakt Zyklop combines five different types of ratchet into one adaptable tool, including a fine-tooth ratchet, a flex-head ratchet, an angle ratchet, a quick-release ratchet, and a power ratchet.
• The Zyklops can also be used as a screwdriver, making this a 6-in-1 tool.
• The flywheel design and easy-to-grip free-turning sleeve are ideal for very high working speeds.
• The ratchet heads pivot freely and can be locked into any defined position using the slide switches positioned on either side.
• The pre-defined locking positions, which occur on both sides at 0°, 15° and 90°, ensure safe working without the ratchet head moving from position.
• It is possible to work in very confined and difficult-to-access areas with increased hand clearance due to the design of the Zyklop Speed.
• The gyrating mass design accelerates screwdriving as the rotation-symmetric structure of the Kraftform handle and the free-turning sleeve reinforces rapid twisting movements. This is especially effective when the ratchet does not engage due to too little resistance in the thread.
• Thumbwheel can be used to quickly and easily switch between clockwise and anti-clockwise rotation in any position.
• The reversible ratchet with 72 fine-pitched teeth has a low return angle of just 5°, allowing for fast and precise work for all installation types.

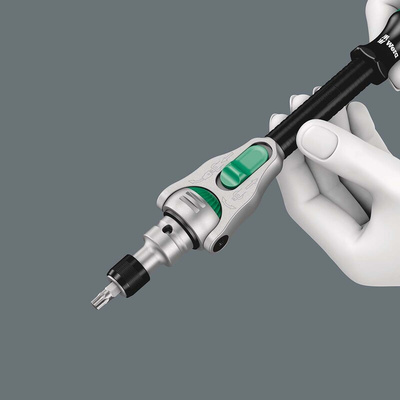

• By attaching a bit adaptor, the ratchet can be used as a conventional screwdriver in the 0° position with any in screwdriver bit.
• Take It Easy tool finder identification marks, with colour coding according to size and profile for quick and easy tool selection.
• The design of the Kraftform handle is dictated by the hand itself, ensuring user comfort. Wera first developed a screwdriver handle to match the human hand as far back as the 1960s and have worked since to optimise them.
• As Kraftform handles fit perfectly in the hand, they prevent hand injuries such as blisters and calluses during work.

Typical Applications

A Screwdriver Set is typically used by professional tradesmen, engineers or those wishing to complete DIY projects. This screwdriver set contains some of the most essential hand tools in any workmans kit. There are many situations and professions where screwdriver types are integral to carrying out a specific task revolving around loosening or tightening fasteners.
Most common screwdriver types such as flat-blade and cross-recess have a very wide range of applications. Only tip size determines if a tool is suitable for the desired application or not. They are commonly used for:

• Mechanical and industrial production
• Electrical or engineering work & repairs
• Woodworking/carpentry/furniture assembly
• Fastening wood to metal
• General maintenance

• Electronics repairs
• Opening consoles - Xbox/ PlayStation
• Opening Mobile phones
• Opening MacBooks

FAQs

What are the typical uses?

Screws are a necessary part of everyday life as they feature in almost everything, including appliances and electronics. Whether youre assembling furniture, finishing DIY projects, and completing installations in commercial settings, screws can be found in anything and have become a useful ally in every industry. Several different types of screwdrivers are available, from Phillips to Pozidriv each serving their own purpose.

Depending on the setting, you could be a DIY enthusiast working on their next project and want a reliable tool or you may just be a conscientious homeowner who wants to have tools readily available if needed to make repairs. The screwdriver has become the go-to tool in the toolbox and will continue to be in the future. To formulate a plan and purchase the correct screwdriver or screwdriver set, make sure you know the size of the screw you are going to use as this is going to be an essential part of your work.

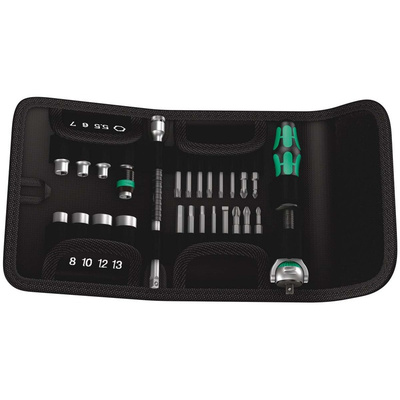

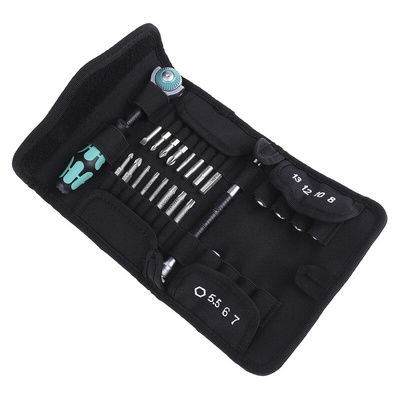

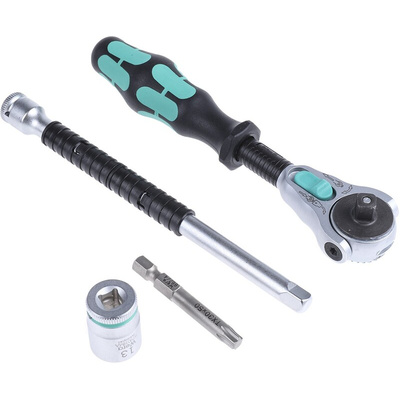

• 1 x 8000A Zyklops Ratchet.

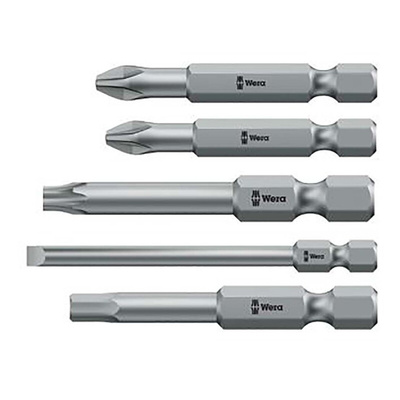

• 1 x 800/4 Slotted bit: 5.5 x 50 mm.
• 4 x 840/4 Hex-Plus bit: 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm.
• 3 x 851/4 Phillips bit: PH1, PH2, PH3.
• 2 x 855/4 Pozi bit: PZ1, PZ2.
• 6 x TORX® bit: TX10, TX15, TX20, TX25, TX27, TX30.

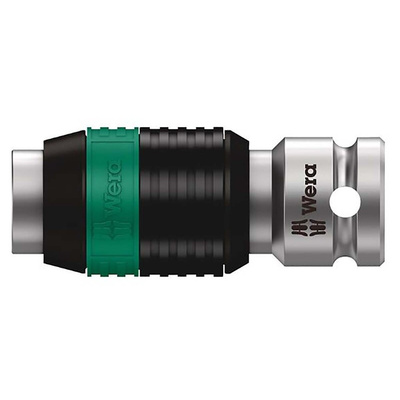

• 1 x 8784 Adaptor.

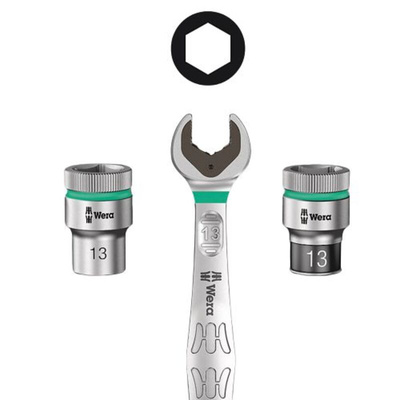

• 7 x 8790 Socket: 5.5 mm, 6.0 mm, 7.0 mm, 8.0 mm, 10.0 mm, 12.0 mm, 13.0 mm.

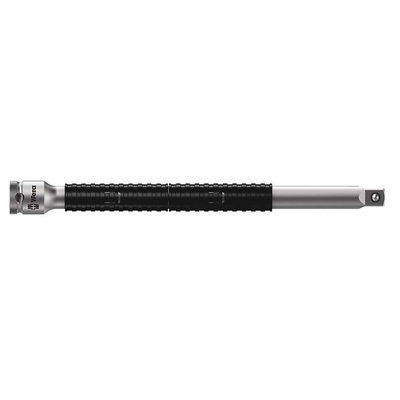

• 1 x 8794 Extension 150.0.

Supplied with

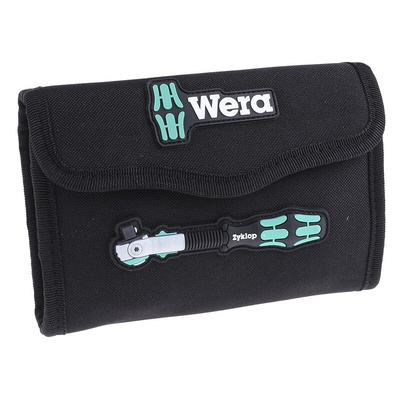

Professional storage & carry pouch.
