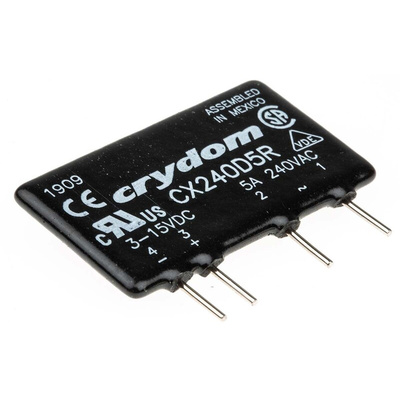

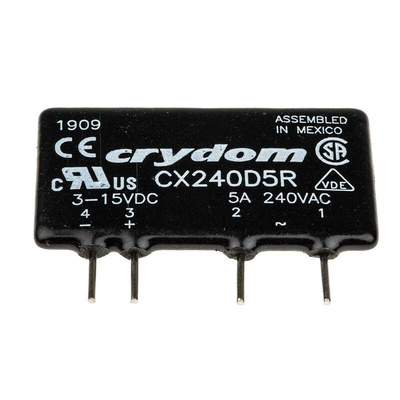

CX240D5R, Sensata / Crydom CX Series Solid State Relay, 5 A Load, PCB Mount, 280 V ac Load, 15 V dc Control, Реле

CX Series SIL SSR, 5A at 12 to 660Vac

Exceptional surge rating and steady state rating of 5A ac
Models to switch from 48-660Vrms
250A pk 1-cycle surge capability
Input-Output capacitance: 10pF
Zero-cross switching where stated otherwise random-fire
Operating temperature range: -30 to +80°C
Dimensions H33mm x W7.6mm x D43.1mm

Approvals

UL, CSA, VDE

Sensata | Crydom Solid-State Relay, 5A Current Rating, SCR Output - CX Series - CX240D5R

For reliable switching in your electrical system, choose this solid-state relay from Sensata | Crydom. The device works by converting electrical signals into optical ones before firing them at a photosensitive transistor, which in turn sends the transmissions to other components. A broad operating voltage range of 12 to 280V AC means it's suitable for use in a wide variety of low-power systems. You'll commonly find an SSR like this one used in multiplexers, home appliances and I/O subsystems.

• Broad operating temperature range between -30°C and +80°C for use in demanding conditions
• Light weight of 11g to place minimal strain on your equipment
• Through-hole terminal type for a strong connection to your PCB

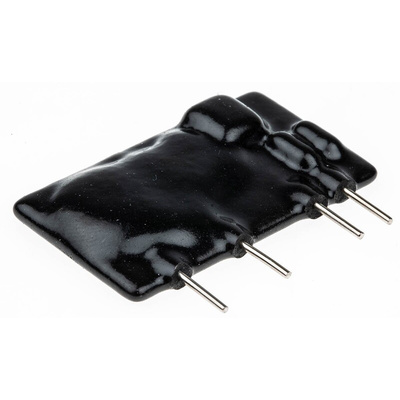

• Thermally conductive epoxy encapsulation for resistance to heat and impact
• Load current range of 0.06 to 5A for use in low-power applications

What are the dimensions of this unit?

This unit has compact dimensions of 43.1 (L) x 7.6 (W) x 25.4mm (H), so it allows you to maximise packing space on your PCB.

Approvals

UL; CSA; VDE

Datasheet

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Line Drawing - CX240D5R
