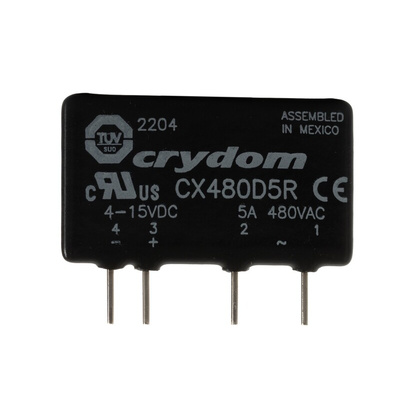

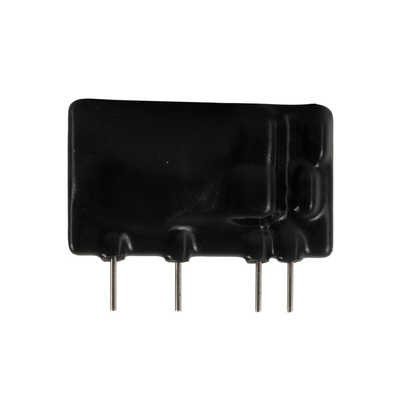

CX480D5R, Sensata / Crydom CX Series Solid State Relay, 5 A Load, PCB Mount, 660 V rms Load, 15 V dc Control, Реле

Sensata | Crydom Solid-State Relay, 48 to 660V AC Operating Voltage Range, 11g Weight - CX Series - CX480D5R

Do you need a component that can switch powerful electrical circuits? This Sensata | Crydom solid-state relay does the job. A wide operating voltage range between 48 and 660V AC means it's a versatile piece of kit. It uses optical signalling, which means there's limited wear as there are no physical contacts. The unit's broad operating temperature range of -30°C to +80°C makes it suitable for use in harsh work areas. You can find relays like this one in a wide variety of applications, including multiplexers, I/O subsystems and medical technology.

Features & Benefits

• Light weight of 11g to place minimal strain on your setup
• Thermally conductive epoxy housing is resistant to chemicals and wear

How quickly does this unit switch on and off?

This relay has a fast turn-on and turn-off time of half a cycle, giving you rapid-fire switching.

What are the dimensions of this unit?

This relay has compact dimensions of 43.1 (L) x 7.6 (W) x 25.4mm (H), so it can squeeze into tight work areas.

Approvals

UL; CSA; VDE

SSR,CX series,SCR,random turnon,5A/660V

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Line Drawing - CX480D5R
