D2W203F, Sensata / Crydom D2W Series Solid State Relay, 3 A Load, PCB Mount, 280 V rms Load, 32 V dc Control, Реле

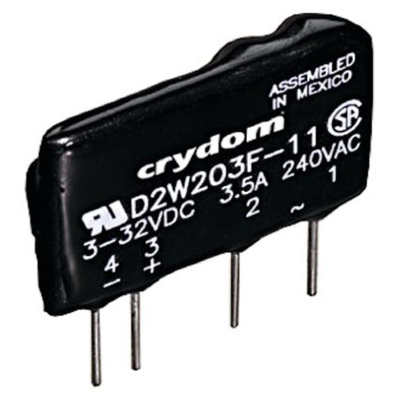

Sensata | Crydom Solid-State Relay, Zero-Cross Switching Type, Triac Output - D2W Series - D2W203F

When you need to safely switch a circuit but space is at a premium, opt for this PCB-mounted solid-state relay from Sensata | Crydom. Thanks to its diminutive dimensions of just 43.2 (L) x 11.9 (W) x 29.9mm (H), this miniature marvel will fit comfortably in the tightest of spots. It's a zero-cross switching type, meaning it won't connect the output to the load until the waveform is at 0V. This makes it a safe choice for delicate components like incandescent bulbs that can be damaged by high in-rush currents. Thanks to the triac output type, this device is ideally suited to low-power AC loads, including motor starters, lights and contactors.

• Internal snubber network offers an extra layer of protection against electrical faults
• Wide operating temperature range between -30°C and +80°C for use in extreme conditions
• Featherlight weight of 17g to place minimal strain on your equipment

What's the contact configuration on this device?

This relay features an SPST configuration, meaning it has one position and can be used to control a single circuit.

Caution
type":"Caution",

Derating will limit the maximum load current at temperatures above 25°C

Approvals

UL; CSA

SSR,D2W series,snubber,ZC,3A/280V

Line Drawing - D2W203F
