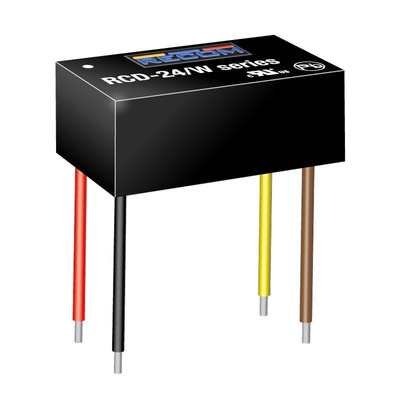

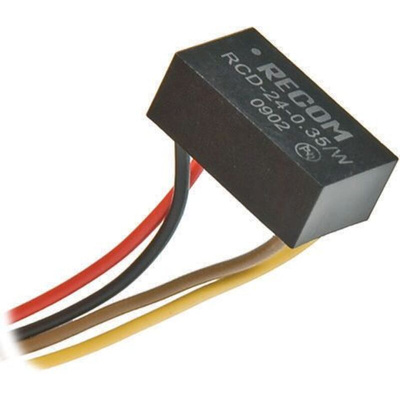

RCD-24-0.30/W/Vref, Recom LED Driver, 2 → 35V dc Output, 10.5W Output, 300mA Output, Constant Current Dimmable, Драйвер светодиодов

Constant Current LED Driver, Wired with Vref - RCD-24 Series

IP67 rated wired constant current LED drivers for driving high power white LEDs. These six wire, constant current LED drivers have analogue voltage dimming and built-in reference output voltage to power sensors or for easy analogue dimming.

Wide input and output voltage range
High operating operating temperature range
Analogue voltage dimming
Built in reference output voltage
IP67 ingress protection
Short circuit and overtemperature protection
High efficiency of 96%
EMC to EN55022 Class B

Standards

EN 609501-1

RECOM LED Driver, Wired Connections, 96% Efficiency Rating - RCD-24 Series - RCD-24-0.30/W/Vref

Take control of your lighting system's performance with this LED driver from RECOM. Using its reference voltage connector, you can loop in a sensor or analogue controller for hassle-free voltage management. Powering many devices at once is this product's bread and butter, as it delivers a steady 10.5W output. This energy-efficient unit converts 96% of its input voltage, which means it doesn't waste much power as heat, so runs cool. A maximum output current accuracy of ±3% indicates the driver produces precise results and keeps sensitive components running smoothly.

Features & Benefits

• Accepts input voltages between 4.5 and 36V DC to work with common power supplies
• Colour-coded conductors, making identifying wires easy
• IP67 rating means it's dust-tight and resistant to temporary submersion in shallow water, so it handles tough industrial conditions
• Comes with integrated short-circuit protection to help minimise damage from electrical faults

Applications

• Billboards
• Logistics industry
• Bottling plants

How do I install this LED driver?

Thanks to its flexible wires, you can add this unit to your system using simple screw terminals, making it easy to adjust your wiring setup later.
