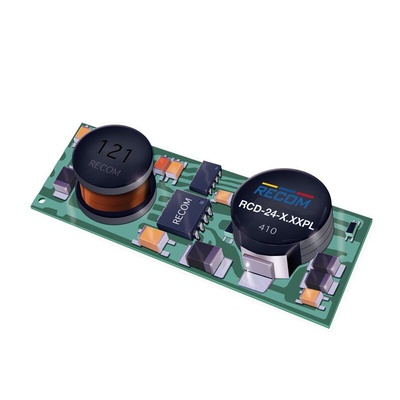

RCD-24-0.35/PL/B, Recom LED Driver, 2 → 35V dc Output, 12.25W Output, 350mA Output, Constant Current Dimmable, Драйвер светодиодов

RECOM LED Driver, 96% Efficiency, Dimmable - RCD-24-PL Series - RCD-24-0.35/PL/B

Use this constant current dimmable LED driver from RECOM to maintain a steady electricity flow in your lighting system. By varying its input voltage, the unit is able to use pulse-width modulation and analogue dimming controls to ensure a smooth and flicker-free transition between differing light intensities. This makes it useful in applications such as strip lighting. Thanks to its EMC pi-filter, the device produces ripple-free voltage and is protected against EMI. It comes without housing for easy integration into your circuit and you can use it to power a single or chain of LEDs connected in series.

Features & Benefits

• Output current ranging between 0 and 350mA for low heat dissipation in the circuit
• 35V maximum DC voltage, suitable for low-power-consuming LEDs
• Operating temperature range between -40°C and +85°C is ideal for use in harsh industrial conditions

Applications

• Automotive industry
• Domestic lighting systems
• Avionic controls

What size is this device?

This unit has dimensions of 31 (length) x 11.4 (width) x 6.6mm (depth), making it suitable for installation in busy setups where space is at a premium.
