RCD-24-0.50/PL/B, Recom LED Driver, 2 → 35V dc Output, 17.5W Output, 500mA Output, Constant Current Dimmable, Драйвер светодиодов

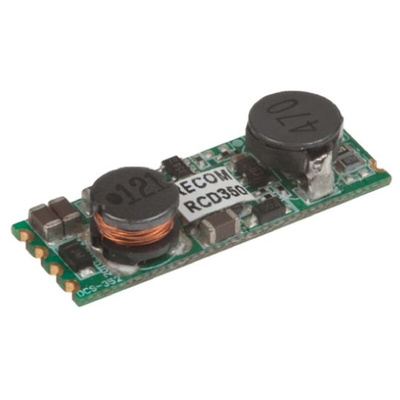

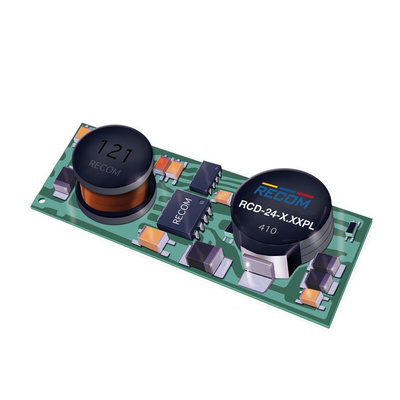

Recom SMD Open Frame Constant Current LED Driver - RCD-24-PL Series

RCD-24-PL series open frame constant current LED drivers for driving high power white LEDs. These pinless, SMD mount LED power supplys use 2 methods for LED dimming; PMW/digital control and analogue voltage dimming which are independent but can also be combined. The RCD-24-PL LED drivers are suitable for applications such as strip lighting, wall washers and flourescent tube replacement designs where a low profile and narrow width are required.

Features and Benefits

• Wide input and output voltage range

• Pinless SMD open frame design to reduce cost and size

• High ambient temperature of 70°C without derating

• Digital PWM and analogue voltage dimming

• Short circuit and overtemperature protection

• High efficiency of 96%

• EMC to EN55022 Class A (see part numbers suffixed with /A)

• EMC to EN55022 Class B (see part numbers suffixed with /B)

Note

MTBF to MIL-HDBK-217F (25°C).

Standards

EN 60950-1

RECOM LED Driver, Open-Frame Configuration, 36V DC Voltage Rating - RCD-24 Series - RCD-24-0.50/PL/B

See your commercial or industrial workspace in a new light with this constant current LED driver from RECOM’s RCD-24 range. Thanks to its built-in EMC filter, you can be sure it won't suffer at the hands of electromagnetic interference. This makes it a practical choice for lighting areas where electrical noise is common. This compact device has an open frame construction and dimensions of just 31 (L) x 11.4 (W) x 6.6mm (H), so it can fit easily into your system even if there's not much space to play with.

• Efficiency of up to 96% makes this an energy-saving option
• 17.5W output for use with high-power LED displays
• Operating temperature between -40°C and +80°C, so it can handle demanding settings
• >
600,000 hours mean time between failures means you can expect a long service life

Applications

• Strip lighting
• Wall washers
• Fluorescent tube replacement designs

Does this driver have a dimming function?

Yes – and not just one. For maximum control over bulb brightness, choose between precision digital control via the PWM dimming mechanism or a built-in analogue voltage dimmer.
