RCD-24-0.50/Vref, Recom LED Driver, 2 → 35V Output, 17.5W Output, 500mA Output, Constant Current Dimmable, Драйвер

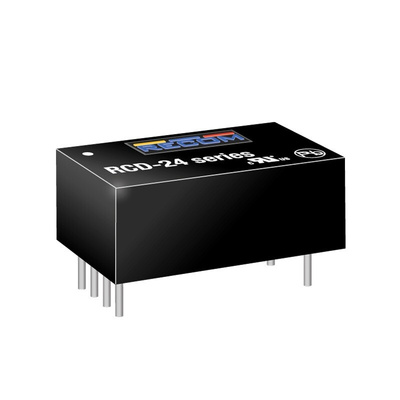

Constant Current LED Driver, PCB Mount with Vref - RCD-24 Series

PCB mount, constant current LED drivers for driving high power white LEDs. These PCB mount, constant current LED drivers use analogue voltage dimming and have built-in reference output voltage to power sensors or for easy analogue dimming.

Wide input and output voltage range
High operating operating temperature range
Analogue voltage dimming
Built in reference output voltage
Short circuit and overtemperature protection
High efficiency of 96%
EMC to EN55022 Class B

Note

MTBF to MIL-HDBK-217F (25°C).

Standards

EN 60950-1

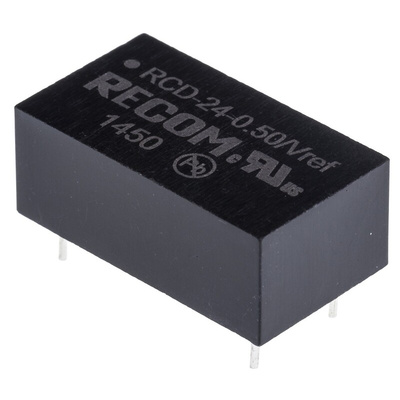

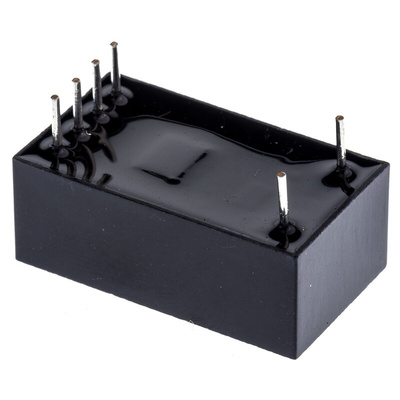

RECOM LED Driver, DC Input Type, 2 to 35V Output Voltage - RCD-24 Series - RCD-24-0.50/Vref

Looking for a reliable way to power your LED system? You'll take a shine to this RECOM LED driver. When supplied with inputs between 4.5 and 36V DC, it provides 2 to 35V with a maximum output of 500mA. This keeps your lighting performing at a high level that'll have you beaming. For versatility, you can choose between analogue and PWM dimming methods. Thanks to a wide operating temperature range between -40°C and +80°C, this LED driver is more than able to handle the heat.

• Built-in reference output voltage lets you power sensors for increased functionality
• Compact dimensions of 22.1 (L) x 12.6 (W) x 8.5mm (D), so it's space-saving
• Broad operating humidity range between 5 and 95% RH for use in areas with high levels of non-condensing water vapour
• Low weight of 4.5g to avoid putting strain on your system

Applications

• Outdoor lighting systems
• Traffic signals
• Light strips

How efficient is this unit?

This LED driver has a high efficiency of 96%, so it's an energy-saving component that doesn't waste power through heat.
