RCD-24-0.70/PL/A, Recom LED Driver, 2 → 35V dc Output, 24.5W Output, 700mA Output, Constant Current Dimmable, Драйвер светодиодов

RECOM LED Driver, 0 to 700mA Output Current, 2 to 35V DC Output Voltage - RCD-24-PL Series - RCD-24-0.70/PL/A

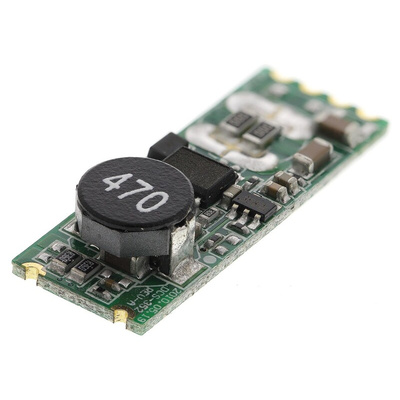

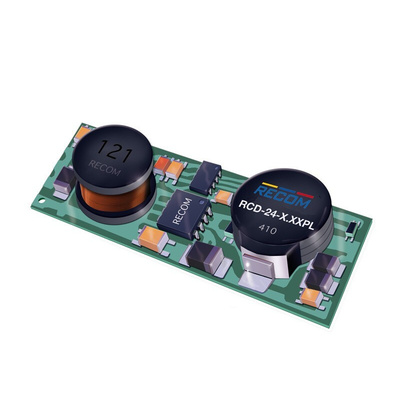

This LED driver from RECOM acts like a self-contained energy supply to power and regulate your LED components. You'll find it commonly used in commercial mood-lighting applications in restaurants and bars. It's also suitable for use in narrow installations like strip lighting and florescent tubes thanks to its slim dimensions of 31 (L) x 11.4 (W) x 6.6mm (H). For versatility, it uses two methods for dimming – PMW and digital dimming control at 0 to 4.35V DC.

Features & Benefits

• Input voltage of 4.5 to 36V DC is compatible with high-power installations
• Tolerates relative humidity levels between 5% to 95% for safe use in challenging conditions
• Supports a constant current for energy efficiency
• Output current of 0 to 700mA for versatility

Applications

• Retail settings
• Entertainment industry

What's the operating temperature range of this LED driver?

You can rest assured that this unit is protected from overtemperature thanks to its wide operating temperature of -40°C to +85°C. This makes it safe for use in extreme conditions.
