RS PRO, Plug Cable Mount MCX Connector, 50Ω, Crimp Termination, Right Angle Body, Разъем

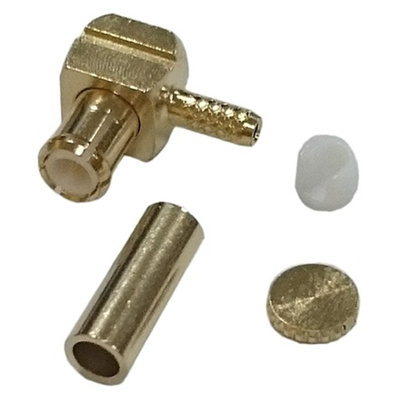

RS PRO 50 Ω Right Angle Cable Mount, MCX Connector, Plug, RG178/U

The RS PRO MCX (micro coaxial) connector jack is a small connector for a quick, tool-free method of connecting and disconnecting coaxial cables. It features a snap-on/snap-off coupling mechanism that reduces time and effort during installation while ensuring that you can quickly and easily connect and disconnect cables when needed.
Thanks to its small size, the connector is perfect in situations where there's a weight limit or restricted space on a printed circuit board (PCB), such as in communication equipment and installations. The right-angle orientation makes it even easier to fit the connector into a tight space.
Gold-plated contacts ensure that the connector offers a high level of conductivity for reliable transmission. It's suitable for use with RG178/U cables, making it a good choice for security equipment, GPS (Global Positioning System) applications and data transmission.

Features and Benefits

• Right angle body orientation
• Gold body plating
• RG178/U cable type
• MCX (micro coaxial) connector type
• Beryllium copper contact material
• Gold contact plating
• Male gender
• Impedance of 50 Ω
• Cable mounting type
• Operating frequency of 0 to 3 GHz
• Crimp termination method

Dimensional Drawing

RS Pro Datasheet
