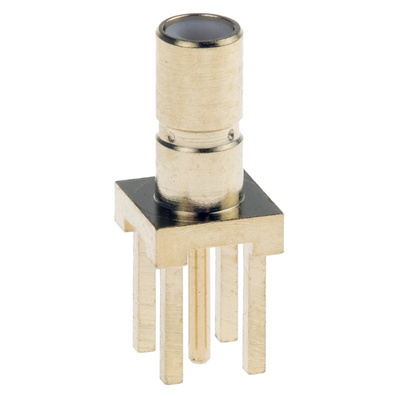

RS PRO, jack PCB Mount SSMB Connector, 50Ω, Solder Termination, Straight Body

RS PRO 50 Ω Straight PCB Mounting, SSMB Connector, Jack

This RS PRO SSMB (Smaller SubMiniature version B) connector jack is a small connector that joins with coaxial cables to connect them with otherwise incompatible appliances. This type of connector is suitable for use at high operational frequencies.
The connector's compact dimensions make it a space-saving choice for mounting on a printed circuit board (PCB) where space is limited. Use soldering to terminate the wires for a secure connection.
To ensure reliable transmission, the connector has a gold-plated brass centre contact. This ensures good conductivity while also improving its wear resistance for long-lasting performance. The body of the connector is also gold-plated for resistance to corrosion, so it can withstand harsh environments.

Features and Benefits

• Straight body orientation
• Gold body plating
• SSMB (Smaller SubMiniature version B) coaxial connector type
• Brass contact material
• Gold contact plating
• Female gender
• Impedance of 50 Ω
• PCB (printed circuit board) mounting type
• Operating frequency of 0 to 4 GHz
• Subminiature size
• Solder termination method

Dimensional Drawing

RS Pro Datasheet
