RS PRO, jack PCB Mount SMA Connector, 50Ω, Solder Termination, Straight Body, Разъем

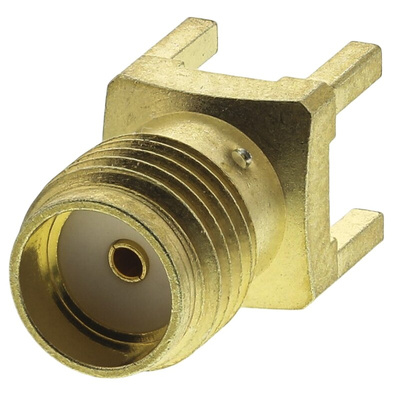

RS PRO 50 Ω Straight PCB Mounting, SMA Connector, Jack

Need a reliable way to join coaxial cables to a printed circuit board (PCB)? Choose this SMA (SubMiniature version A) connector from RS PRO. This type of connector is most commonly used in WiFi equipment.
The straight body orientation and compact dimensions of the connector make it easy to install, as it will fit easily onto most printed circuit boards. It offers solder termination for a tight join to ensure long-lasting performance. Thanks to its gold-plated contacts, it offers high conductivity and good wear resistance, ensuring the connector provides a reliable connection over a long service life.

Features and Benefits

• Straight body orientation
• Gold body plating
• No bulkhead
• SMA (SubMiniature version A) connector type
• Beryllium copper contact material
• Gold contact plating
• Female gender
• Impedance of 50 Ω
• PCB mounting type
• Operating frequency of 0 to 18 GHz
• Normal polarity
• Subminiature size
• Solder termination method
• Voltage rating of 500 V

RS Pro Datasheet

RS PRO Dimensional Drawing
