RS PRO, Plug Cable Mount SMA Connector, 50Ω, Crimp Termination, Right Angle Body, Разъем

SMA Crimp Connectors

A range of SMA crimp connectors from RS.

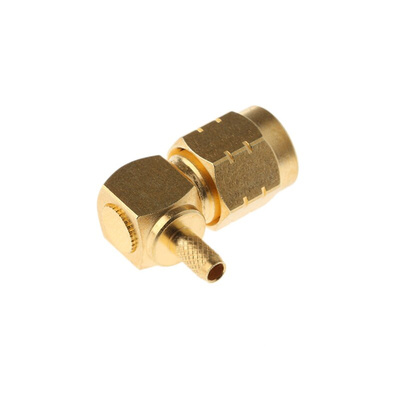

RS PRO 50 Ω Right Angle Cable Mount, SMA Connector, Plug, RG174, RG316/U

If you need to link small coaxial cables at a right angle, use this SMA (SubMiniature version A) connector from RS PRO. It's compatible with RG174 and RG316/U cable types, so it's ideal for use with handheld radio antennas and WiFi systems.


The connector has contacts made from beryllium copper, a material that provides good electrical conductivity for reliable data transmission. The gold contact plating helps resist rust and corrosion to ensure that the connector lasts a long time.


This product is suitable for use in harsh environment thanks to the crimping termination method, which creates an airtight seal to keep moisture out. This also provides a secure join, preventing interference with signal transmission.

Features and Benefits

• Right-angle body orientation


• Gold body plating


• No bulkhead


• RG174, RG316/U cable type


• SMA (SubMiniature version A) coaxial connector type


• Beryllium copper contact material


• Gold contact plating


• Male gender


• Impedance of 50 Ω


• Cable mounting type


• Operating frequency of 3 GHz


• Normal polarity


• Subminiature size


• Crimp termination method


• Voltage rating of 335 V

RS SMA RF Coaxial Connectors

RS SMA connectors are suitable for applications including wi-fi equipment.
