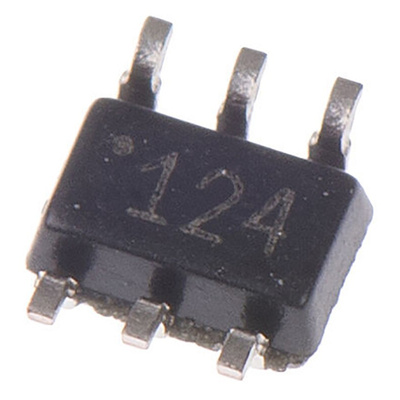

Microchip MCP4017T-503E/LT, Digital Potentiometer 50kΩ 128-Position Linear Serial-I2C 6 Pin, SC-70, Цифровой потенциометр

MCP4017/4018/4019 Digital Potentiometers

Microchips MCP4018 series are a range of great digital potentiometers. This range includes volatile memory all in a mini SC70 (SOT-323) package. The MCP4018's include options to have it in a potentiometer or rheostat configuration and feature a wide range of voltage options, from 1.8V up to 5.5V. These potentiometers are7-bit resolution (128 wiper steps).

Digital potentiometers can be used in many applications that need a variable voltage resistance. Digital penetrometers are typically used where mechanical potentiometers are employed.

Features and benefits:

• Rheostat or potentiometer config


• Zero to full scale wiper operation


• Low power operation of only 2.5 μA


• Low wiper resistance – typically 100 Ω


• Extended operating temperature: -40°C to +125°C


• Wide operating voltage


• Simple I2C Protocol with read & write commands

Need different resistance?

100KΩ – 738-6809

Digital Potentiometer - Microchip

Datasheet
