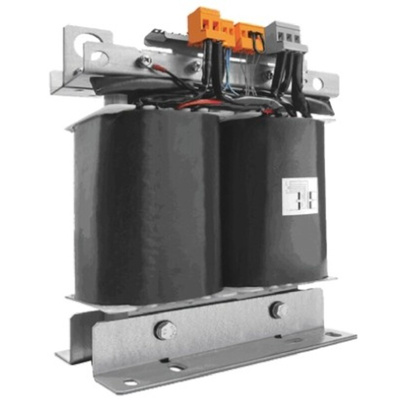

TTMS 3150/230, Block 3.15kVA 1 Output Chassis Mounting Transformer, 115/230V ac, Трансформатор

TTMS Series Medical Transformers

The TTMS series of isolation transformers have a rated input of 230 V ac and a rated output voltage of 115 V ac and 230 V ac. These isolation transformers are protected from overload by a PTC resistor that is integrated in every coil to set up an external monitoring unit. Reduced starting currents enable excellent switch-on behaviour and these isolation transformers feature low short circuit voltage and very low idle current. BLOCKIMPEX vacuum impregnation allows for low noise and excellent corrosion protection. With a robust metal fixing rail featuring 8 oval slots, these isolation transformers are easy to mount.

Features & Benefits

Safe galvanic isolation
IP00 protection
97% efficient
Insulation class B
UVV BGV A3 compliant contact protected screw terminals
+40°C maximum ambient temperature

Product Application Information

These isolation transformers have been designed for supplying user group 2 medical rooms.

Brand Information

BLOCK is a global leader in power supply interface. Developing and producing switched mode power supplies through to coiled goods, BLOCK also offer cast resin optimisation and software development.

Laminated

TTMS Transformers Data Sheet
