Weller WX 1010 Soldering Station Set

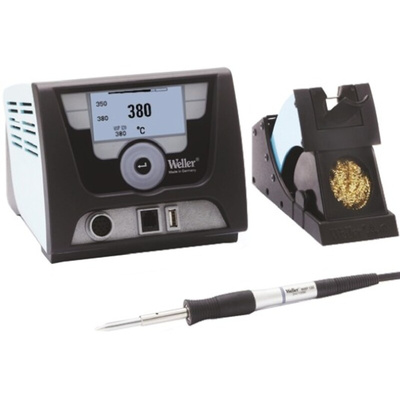

Introducing the WX 1010 from Weller, this digitally controlled soldering station uses a touch screen LCD display with a central turn and click wheel to confirm selections. four push buttons to provide easy temperature control for your soldering application. The WX 1 station supports one tool up to 200W, with an additional port for USB to datalog and parameter configurations. An integrated sensor ensures that WX tools are motion-activated, allowing them to only consume power when in use. The WX 1010 station set is supplied with a soldering iron, soldering station, soldering tip and soldering iron rest. The 120W soldering station offers great power output with the flexibility over standard soldering irons as they can be used for a variety of applications.

What's included?

• 1 x WX 1 power unit


• 1 x WXP 120 soldering iron


• 1 x WDH 200 soldering iron rest


• 1 x XTB soldering tip

Power Unit

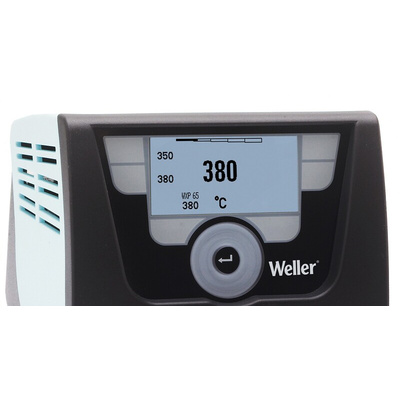

The power unit features push buttons to precisely control the temperature to suit the application, with an easy to read large LCD touchscreen. The temperature range is from 100°C to 550°C (212°F to 1022°F), offering a great deal of flexibility for various soldering applications. This then means the heat up and recovery times are provided quicker, allowing the job to be quicker more efficient. The Weller WX 1 soldering station is ESD protected and offers a temperature accuracy of ±9°C. There is a 3.5mm jack plug and socket on the back of the soldering unit for equipotential bonding. Equipotential bonding enables you to be ESD safe by joining metalwork that may be earthed, to avoid any potential malfunctions from ESD.

Soldering Iron

Part of this WX 1010 soldering set is the WXP 120, this intelligent hybrid 120W (24V) soldering iron designed iron for accurate soldering. The 90W soldering iron is ideal for soldering small and medium components with high energy demand. Not only does the power unit know when to go on standby, but the WXP 90 also utilises a motion sensor to automatically go on standby to reduce energy costs. Interchangeable heating elements provide a great deal of flexibility when using different soldering iron tips. Easy to change out XNT tips enable to quickly change out a tip if required for different tasks, without any additional tools.

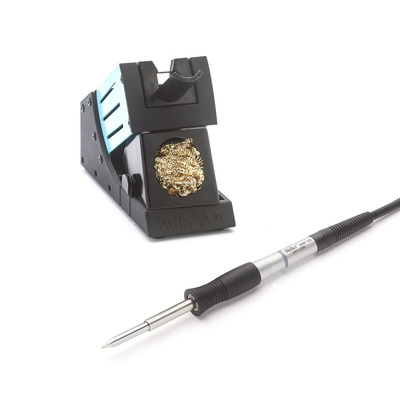

Soldering Iron Rest

The Weller WDH 10 soldering iron rest is an ideal place to keep the soldering iron when not in use. Supplied with a brass metal for dry tip cleaning, integrated into the stand. The iron stand is adjustable, through tilt angles from 30 to 80° for easy pickup and putting down.

Soldering Iron Tip

The tip of choice in this set is from the XTB series of soldering tips. The chisel tip end measures 2.4 mm by 0.8 mm and is 36 mm long. The heat transfer is very effective whilst offering longevity and durability. Easily replaced by simply unscrewing the attached tip, place the replacement tip in and screwing back into place.

Features and Benefits

• Temperature accuracy of ±9°C


• 200W Power station for high-level productivity


• Intelligent and fast heating soldering iron


• Features digital touchscreen display for easy temperature readings


• Standby mode for both power unit and soldering iron efficiency


• Integrated dry soldering tip cleaner


• Easy tip changes


• EU Plug and UK Plugs

Typical Applications

Soldering irons are used to work and rework solder in all manner of applications, particularly in repairing or building PCB circuit boards with SMD and through-hole components. They are commonly used in electronic prototyping and production, and any application where a circuit board component might have to be removed or adjusted. Soldering irons are often used by:

• Engineers


• Electricians


• Metalworkers


• Jewellers


• Home inventors

FAQ's

Does it display in Centigrade or Fahrenheit?

This solder station only shows Centigrade (°C). The temperature range is from 100°C to 550°C (212°F to 1022°F).

What plug does the Weller WX 1010 use?

This soldering station has both UK and EU plug adapters.
