Teledyne LeCroy ZD Series ZD1000 Oscilloscope Probe, Active, Differential Type, 1.2GHz, 1:1, Щупы для осциллографа

Teledyne LeCroy ZD Series Active Differential Probes

Differential active probes are like two probes in one. Instead of measuring a test point in relation to a ground point (like single-ended active probes) differential probes measure the difference in voltage of a test point in relation to another test point. Featuring high bandwidth, excellent common-mode rejection ratio (CMRR) and low noise, the LeCroy ZD Series differential probes are ideal for applications such as automotive development and failure analysis, together with wireless and data communication design. With its ProBus interface, the ZD Series probe becomes an integral part of the oscilloscope.

Probe gain and offset controls are transparent to the user, making it easier to probe the circuit without concern for which gain setting to choose. When used with a LeCroy digital oscilloscope, no external power supply is required. Teledyne LeCroy also offers PK111 ( 7898337 ) which is a replacement accessory kit for ZD500, ZD1000 & ZD1500.

CMRR (typical) 80dB @ 60 Hz (ZD200), 60dB @ 50/60 Hz (ZD500, ZD1000, ZD1500)

Applications:

• Automotive


• Power applications


• Motor drive development


• Product design applications

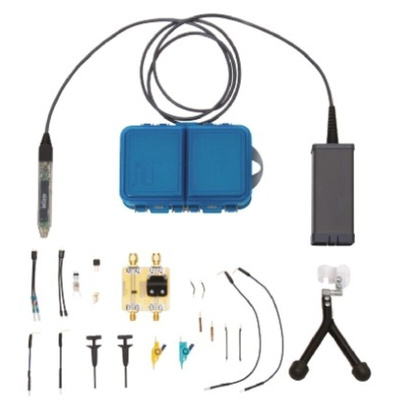

Supplied With:

• Y lead adapter


• 2x solder-in lead


• 2x long spring loaded bendable ground


• 2x tip saver


• swivel tip adapter


• 2x small IC adapter


• 6x micro pogo pin tip


• 2x right angle connector short


• 2x right angle connector long


• 2x micrograbber


• 2x minigrabber


• 2x short spring loaded bendable ground


• probe calibration fixture


• ZD replacement kit instruction manual


• Certificate of calibration

ZD Series Active Differential Probes Instruction Manual

ZD Series Active Differential Probes Data Sheet
