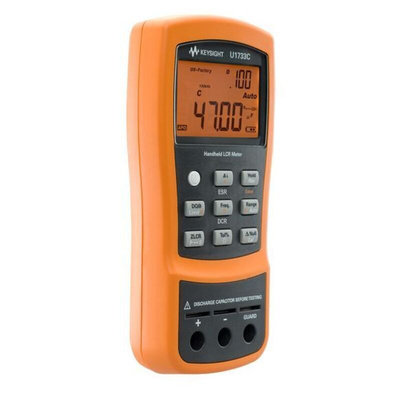

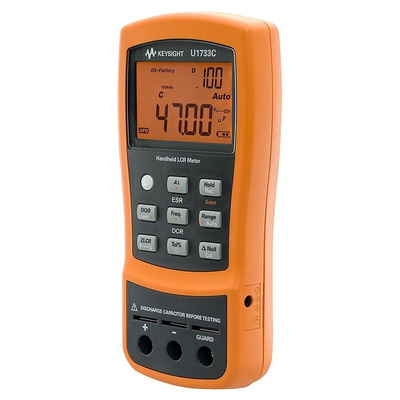

Keysight Technologies U1733C Handheld LCR Meter 20mF, 200 MΩ, 2000H, LCR-метр

Keysight U1730C Series Handheld LCR Meters

Keysight U1730C Series handheld LCR meters have capabilities typically associated only with benchtop meters. Measuring is faster using the one-touch automatic identification button. Testing on-the-go is facilitated by a battery which lasts up to 16 hours. The handheld LCR meters enable the user to test component types including secondary components of Dissipation Factor (D), Quality Factor (Q) and Angle Indication of Impedance (θ). They include functions that result in a more detailed component analysis. For example, the built-in Equivalent Series Resistance (ESR) function helps the user to better understand the resistance behaviour typically found in capacitors across selected frequencies. Also included Quick start guide, Certificate of Calibration, alligator clip leads and 9V alkaline battery.

Features and Benefits:

• 20,000 counts resolution
• 0.2% basic accuracy
• Wide LCR ranges
• Auto identification (Ai) automatically determines and displays component type and measurements
• Detailed component analysis
• IR-to-USB connectivity for data logging to PC
• Test frequency up to 100kHz

Note

Backlight function to ease viewing in subdued lighting (in U1732C & U1733C). DCR measurement (in U1733C).

Keysight Technologies LCR Meter, 0.2% Accuracy, 16h Battery Life - U1733C

Need to measure the voltage and current flowing through a device? Choose this LCR meter from Keysight Technologies. It's a versatile component that measures parameters such as conductance, resistance and dissipation factor. Thanks to the compact dimensions of 184 (H) x 87 (W) x 41mm (D), this unit will easily fit onto a workbench or desk without taking up too much space. Its light weight of 337g means you can easily carry it for on-the-go use.

Features & Benefits

• Wide operating temperature range between -10°C and +55°C for safe use in demanding conditions
• LCD display makes it easy to read your results
• Accuracy of 0.2% ensures you get precise readings
• Backlight function allows you to see the screen in dimly lit areas

Applications

• Testing equipment
• Electrical inspections
• Alarm systems

How can I charge or power this LCR meter?

The unit comes with a 9V battery for cord-free use. You can also connect the device to a mains power source. The battery has a long lifespan of 16 hours, so you can use it for long periods of time without the need to charge it.

Supplied with
type":"Supplied with",

Quick start guide, Certificate of Calibration, alligator clip leads, 9V alkaline battery
