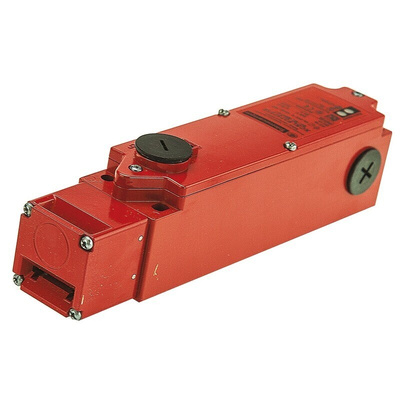

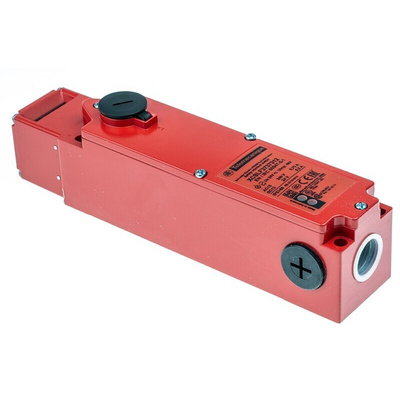

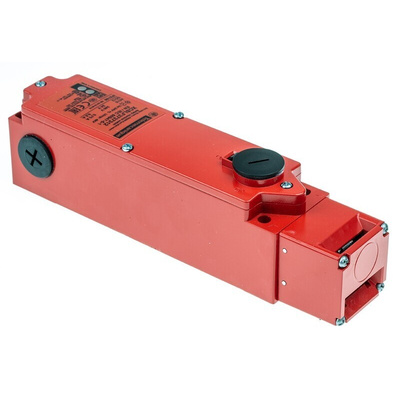

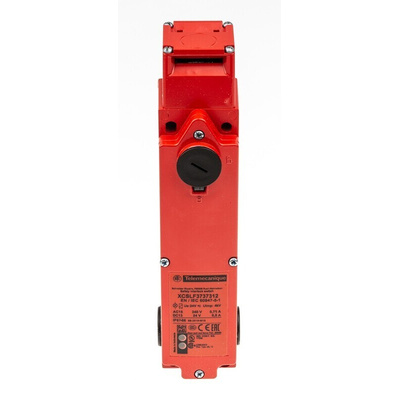

XCSLF3737312, Telemecanique Sensors XCS-LF Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc, Выключатель

Telemecanique Sensors XCS LF Solenoid Interlock Switch.

From Telemecanique Sensors this is the XCS LF series of safety solenoid interlock switches providing you with the solution when running machinery and a guard or door stays closed. Interlock switches protect machine operators by stopping the equipment when the door or guard opens by withdrawing the actuator attached from the switch head. The XCSLF solenoid interlock switch is ideal for use with heavy duty industrial machines with a low rundown time.

The Telemecanique Sensors XCS-LF series solenoid interlock switch has a power supply voltage rating of 24VAC/DC. It has 2 NC/1 NO safety slow break contacts. The switch is made of a metal housing material and is a power to unlock type.

Features and Benefits.

• Preventa Safety Detection, Safety Switch.


• Slim design.


• Metal (body and head –Zamak).


• Key operated turret head.


• 2 NC _ 1 NO (slow break, break before make).


• 3 cable entries tapped M20 x 1.5


• 3 Poles.


• Spring terminal clamping.


• Locking – interlocking by solenoid.


• 1 LED (orange – actuator withdrawn).


• 1 LED (green – actuator inserted and locked.


• Operating temperature is between -25°C and 60°C


• Maximum contact rating of 15A


• Mechanical life is up to 1000000 cycles


• Depth 51 mm.


• Height 205 mm.


• Width 44 mm.


• Weight 1.1 kg.

Certifications.

• IP66 rated


• IP67 rated


• EN 1088/ISO14119


• EN/IEC 60204-1


• EN/IEC 60947-5-1


• EN/IEC 62061


• EN/ISO 13849-1


• UL508


• CSAC22.2 No 14


• TUV certified
