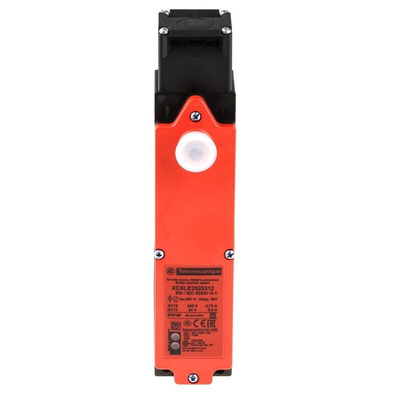

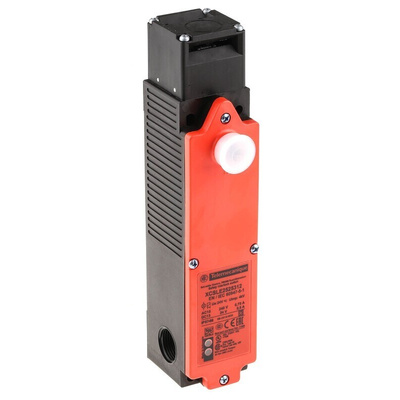

XCSLE2525312, Telemecanique Sensors XCS-LE Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc

Telemecanique Sensors Solenoid Interlock Switch XCSLE.

From Telemecanique Sensors this is the XCSLE series of safety solenoid interlock switches providing you with the solution when running machinery and a guard or door stays closed. Interlock switches protect machine operators by stopping the equipment when the door or guard opens by withdrawing the actuator attached from the switch head. The XCSE solenoid interlock switch is ideal for use with heavy duty industrial machines with a low rundown time.

The Telemecanique Sensors XCSLE series solenoid interlock switch has a power supply voltage rating of 24 V, and has NC / NO safety slow break contacts. The switch is made of a plastic housing material and is interlocking, locking and unlocking by solenoid.

XCSLE2525312 Features and Benefits.

• XCSLE Safety switch.


• XCS Range of safety switches.


• Slim design.


• Plastic PA (polyamide) design.


• Key operated turret head.


• Contacts 1 NC + 1 NO (type).


• Solenoid Contacts 1 NC + 1 NO (slow break – break before make).


• 3 Cable entries tapped for M20 x 1.5.


• Cable outer diameter 7 – 13 mm.


• 2 Poles.


• Spring Terminal clamping.


• (Us) Rated supply voltage 24 V.


• Locking – interlocking by solenoid.


• 1 LED (orange –actuator withdrawn).


• 1 LED (green – actuator inserted and locked).


• Circuit voltage 24 V.


• NC contact positive opening.


• AC/DC supply voltage.


• Maximum load current 15 A.


• Mechanical life 1000000 cycles.


• Operating temperature is between -25°C and 60°C

Certifications.

• UL, CSA, TUV.

Standards.

• EN/IEC 60204-1, CSA C22.2 No 14, EN/IEC 62061, UL 508, EN/ISO 13849-1, EN/IEC 60947-5-1, EN 1088/ISO 14119.

Safety Level.

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, Can reach SIL 3 conforming to EN/IEC 61508.

Note

Actuators not included, must be ordered separately.
