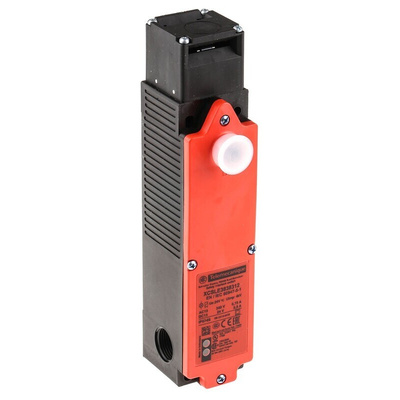

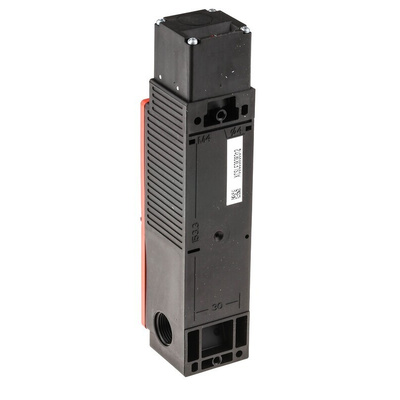

XCSLE3838312, Telemecanique Sensors XCS-LE Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc

XCS LE Series Solenoid Interlock Switches

The XCS LE series of solenoid interlock switches from Schneider offer a wide range of different contact versions for a variety of different guard door protection applications. Each XCS LE unit has a robust design with a high enclosure protection rating of IP67, perfect for a large range of different environments where the implementation of a solenoid interlock would be required.

Range inclusive of power to unlock types
Key operated turret head
High protection class rating of IP67
Operating temperature of -25 → +60 °C
Maximum contact rating of 15A
Mechanical life of up to 1000000 cycles

Note

Actuators not included, must be ordered separately.

Standards

CSA C22-2 No 14, EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 62061, EN/ISO 13849-1, UL508

Approvals

CSA, TÜV, UL

Features and Benefits XCSLE3838312 Telemecanique XCSLE Safety Switch.

• XCSLE Safety switch.


• XCS Range of safety switches.


• Rectangular design.


• Polyamide (PA) head and body material.


• Key operated turret head.


• Contacts 3 NC (type).


• Solenoid Contacts 3 NC (slow break – simultaneous).


• 3 Cable entries tapped forM20 x 1.5.


• Cable outer diameter 7 – 13 mm.


• 3 Poles.


• Locking With interlocking, locking by solenoid.


• Terminal clamping.


• (Us) Rated supply voltage 24 V.


• 1 LED, orange actuator withdrawn, 1 LED, green actuator inserted and locked.


• Circuit voltage 24 V.


• NC contact positive opening.


• AC/DC supply voltage.


• Mechanical life 1000000 cycles.


• Weight 0.53 Kg.


• Operating temperature is between -25°C and 60°C

Safety Level.

• Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1. Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1. Can reach SIL 3 conforming to EN/IEC 61508.
