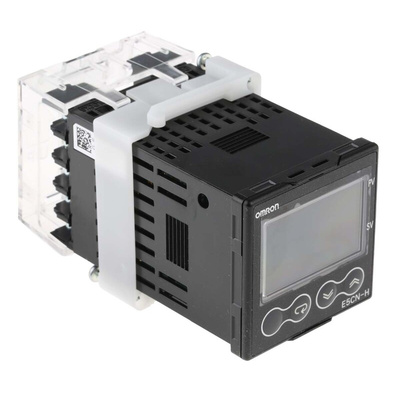

E5CN-HQ2M-500 AC100-240, Omron E5CN PID Temperature Controller, 48 x 48mm, 2 Output Relay, 100 → 240 V ac Supply Voltage, Регулятор температуры

Omron Temperature Controller

The Omron E5CN series temperature controller offers a single control voltage output for driving SSR and two auxiliary outputs. This high resolution, high speed, and high input accuracy controller has a width of 48mm and a height of 48mm (1/16 DIN) device. It has an operating supply of 100VAC to 240VAC.

Features and Benefits

A PV/SV-status display function can be set to automatically alternate between displaying the status of the Temperature Controller (auto/manual, RUN/STOP, and alarms) and the PV or SV
±0.1% FS analogue input
Available with cover terminal
Flexible contact outputs with logic operations (AND, OR, and delays) set from the Support Software (CX-Thermo Ver. 4.0)
High resolution display with 5 digits/0.01°C display
High-speed sampling cycle of 60ms
Preventive maintenance for relays using a control output ON/OFF counter
±0.1% PV input of thermocouple and PT
Universal inputs on all models (thermocouple, PT, analogue) to handle various sensors with one controller

Certifications

CSA C22.2 No. 1010-1
EN61010-1
EN61326
Front panel IP66 rated
IEC61010-1
Rear case IP20 rated
Terminals IP00 rated
UL 61010-1
VDE0106, Part 100 (Finger protection) when the terminal cover is mounted
