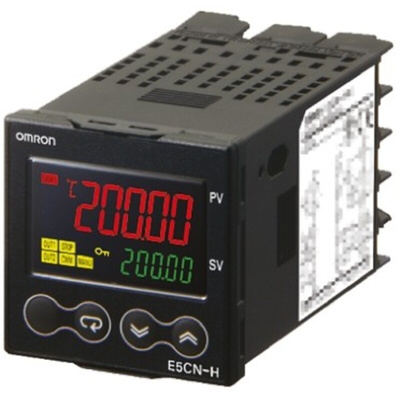

E5CN-HQ2MD-500, Omron E5CN PID Temperature Controller, 48 x 48mm, 2 Output Relay, 24 V ac/dc Supply Voltage, Регулятор температуры

Omron Temperature Controller

The Omron E5CN series temperature controller offers single control voltage output for driving SSR and two auxiliary outputs. This high resolution, high speed, and high input accuracy controller has a width of 48mm and a height of 48mm (1/16 DIN) device. It has an operating supply of 24VAC/VDC.

Features and Benefits

A PV/SV-status display function can be set to automatically alternate between displaying the status of the Temperature Controller (auto/manual, RUN/STOP, and alarms) and the PV or SV
±0.1% FS analogue input
Available with cover terminal
Flexible contact outputs with logic operations (AND, OR, and delays) set from the Support Software (CX-Thermo Ver. 4.0)
High resolution display with 5 digits/0.01°C display
High-speed sampling cycle of 60ms
Preventive maintenance for relays using a control output ON/OFF counter
±0.1% PV input of thermocouple and PT
Universal inputs on all models (thermocouple, PT, analogue) to handle various sensors with one controller

Certifications

CSA C22.2 No. 1010-1
EN61010-1
EN61326
Front panel IP66 rated
IEC61010-1
Rear case IP20 rated
Terminals IP00 rated
UL 61010-1
VDE0106, Part 100 (Finger protection) when the terminal cover is mounted
