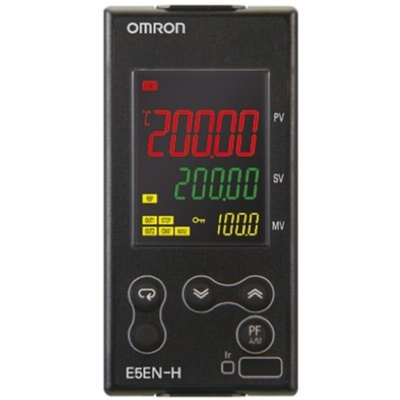

E5EN-HAA2HBMD-500, Omron E5EN PID Temperature Controller, 48 x 96mm, 3 Output Relay, 24 V ac/dc Supply Voltage, Регулятор температуры

E5EN-H/E5AN-H 1/8 and 1/4 DIN Temperature Controllers

A high-performance controller with high resolution, high speed, and high input accuracy.In addition it has logic operations and preventive maintenance functions, and has an infrared port on the front panel.

High-resolution display with 5 digits/0.01°C display
High-speed sampling cycle of 60 ms.
Thermocouple/Pt input: ±0.1% of PV
Analogue input: ±0.1% FS
Universal inputs on all models (thermocouple, PT, analogue) to handle various sensors with one controller
PV/SV-status display function can be set to display the PV or SV and the status of the temperature controller (auto/manual, RUN/STOP and alarms)
Flexible contact outputs with logic operations (AND, OR, and delays) set from the Support Software (CX-Thermo Ver. 4.0)
Preventive maintenance for relays using a control output ON/OFF counter

Omron E5N-H Range

Temperature Controller E5AN_E5EN Series Data Sheet
