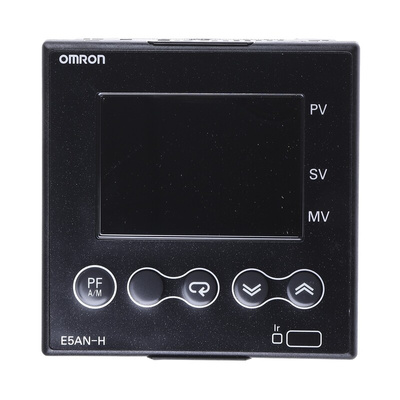

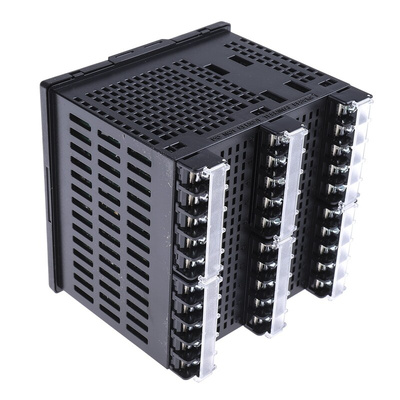

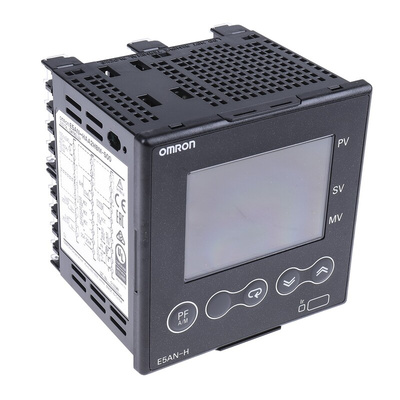

E5AN-HAA2HBM-500 AC100-240, Omron E5AN PID Temperature Controller, 96 x 96mm, 2 Output Relay, 100 → 240 V ac Supply Voltage, Регулятор температуры

Omron Temperature Controller

The Omron E5AN-H series temperature controller has a two slots for control output module and two auxiliary outputs. This controller has a width of 96mm and a height of 96mm. It has an operating supply of 100VAC to 240VAC. This controller has a logic operations and preventive maintenance functions and has an infrared port on the front panel. The controller has multiple options are heater burnout or SSR failure or heater overcurrent detection, two event inputs and third option unit can be mounted.

Features and Benefits

A PV/SV-status display function can be set to automatically alternate between displaying the status of the Temperature Controller (auto/manual, RUN/STOP, and alarms)
±0.1% FS analogue input
Available with cover terminal
Flexible contact outputs with logic operations (AND, OR, and delays) set from the Support Software (CX-Thermo Ver. 4.0)
High resolution display with 5 digits/0.01°C display
High-speed sampling cycle of 60ms
Preventive maintenance for relays using a control output ON/OFF counter
±0.1% PV input of thermocouple and PT
Universal inputs on all models (thermocouple, PT, analogue) to handle various sensors with one controller

Certifications

CSA C22.2 No. 1010-1
EN 61010-1 (IEC 61010-1): Pollution level 2
Overcurrent category II
UL 61010-1
