IRL-5-M-S-2-RS, Lorlin Key Switch, Double Pole Double Throw (DPDT), 1 A @ 24 V dc 2-Way, -20 → +65°C, Выключатель с ключом

Lorlin Key Switch

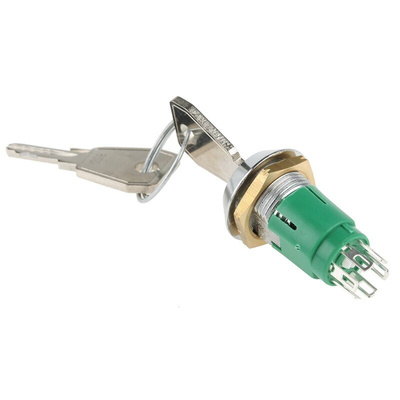

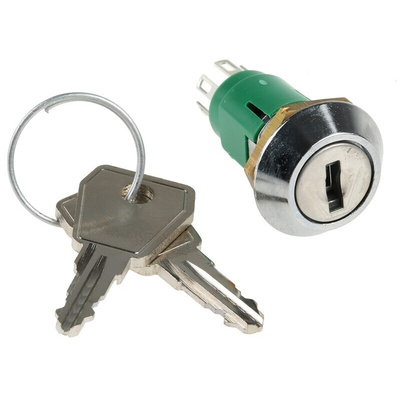

The Lorlin key switch has a double pole double throw (DPDT) contact configuration. It has a zinc alloy housing with a tapered bezel. It is supplied with 2 nickel-plated mild steel keys.
The switch has a contact current rating of 1A at 24VDC.

Features and Benefits

Number of positions are 2
Switch operation is momentary
Key trapping
Random key
Solder terminal
Polyamide case material
Bezel shape is tapered
Depth behind panel is 29.6mm
Key index angle of 60°
Contact material is silver-plated brass
Mechanical life is 10,000 cycles
Operating temperature ranges between -20°C and 65°C

Applications

Control panels
Lighting operations

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

IRL Key Lock Switch datasheet.pdf
