HRL-5-E-S-2-RS, Lorlin Key Switch, SPDT, 1 A @ 24 V dc 2-Way, -20 → +65°C, Выключатель с ключом

16mm High Retention Key Switch - HRL Series

Single or double pole, two position, high retention, miniature HRL Key Switch from Lorlin Electronics. The 5 disk HRL Key Switch is available with a tapered bezel and a same (common) key profile. The HRL Key Switch features a high retention module ideal for portable and vehicle applications.

16mm panel cut out
Zinc alloy housing with a tapered bezel
Trapped key removal (key removable in 12 o'clock position)

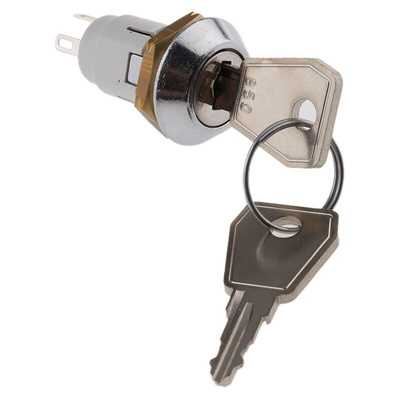

Supplied with 2 nickel plated mild steel keys
Double entry keys (can be inserted into the lock either way up)
Single pole versions have 90° total movement and indexing
Double pole versions have 60° total movement and indexing

HRL Key Lock Switch Datasheet
