2320911, Phoenix Contact QUINT-PS/ 1AC/24DC/10/CO Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc, Блок питания

Phoenix Contact QUINT POWER - Power supplies

The range of QUINT POWER from Phoenix contact are superior power supplies that provide a seamless experience as they're feature-packed with all necessary requirements and more. These power supplies maximise the availability of your plant by utilizing technologies such as NFC (Near field communication) so you can quickly configure these supplies from a smartphone, SFB (Selective Fusebreaking), 6-times nominal current for 12ms, extended life range of over 500,000 hours and super-reliable start in difficult loads with a static power reserve (POWERBOOST).

These brilliant power supplies are designed to be mounted onto a DIN rail and contain screw connections for your cables. Not to mention, these PSU's (Power supply unit) features a preventative function monitoring that allows the device to report on critical statues before any errors occur.

Features and benefits:

• Primary-switched


• Super-reliable power supplies come backed by over 500,000 hours of life


• Adjustable voltage ranges cover a vast spectrum of voltages.


• Fast tripping of standard circuit breakers wutg dynamic power reserve - 6 times to nominal current for 12ms


• Preventative function monitoring


• NFC technology allows you to easily configure the PSU (configure signalling thresholds and characteristic curves)


• Output of 24 VDC/20 A


• Slim design with a conformal coating to allow you to install it in extreme environments


• 93% efficient (for 230 V AC and nominal values)

How do I wire a DIN rail power supply?

The QUINTPOWER power supply unit's feature terminal blocks on both the top & bottom of the unit. You'll need to strip 7mm length from your cable and insert it into the terminal blocks. A simple screw connection (M4 screw) will then lock your cable into the terminal block, providing an output or input connection. However, please follow all manafactuer installation instructions.

What are DIN-rail power supplies used for?

Typically these power supplies are mounted into cabinets and are used in industrial circumstances. They can be used for automation, machinery or any project that has modules that are mounted on DIN-rails.

Note

665-7766, 665-7769, 665-7794 and 665-7790 do not feature SFB technology

Approvals

UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved, CSA, CB, ABS

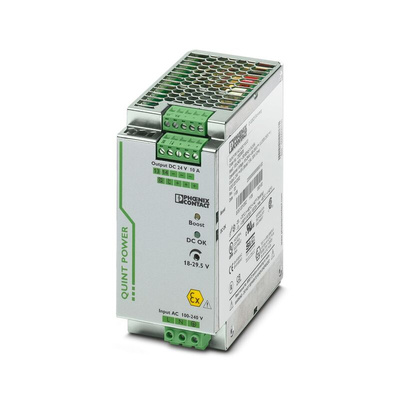

Phoenix Contact QUINT-PS/ 1AC/24DC/10/CO Series DIN Rail Power Supply, Single Phase, DIN Rail Mount - 2320911

This Phoenix Contact DIN rail power supply, with a 24V DC output voltage and 240W power rating, is designed to provide reliable power for automation, electronics, electrical, and mechanical applications. With a compact and efficient design, this power supply offers high functionality and system protection.

Features & Benefits

• Single phase power supply ideal for industrial applications
• Switch Mode Power Supply for efficient operation
• Compact DIN Rail module for easy installation and space saving
• High efficiency (>92.5%) for optimal performance
• AC to DC Power Converter for versatile usage
• Selective Fuse Breaking for quick system protection
• POWER BOOST feature for reliable starting of heavy loads

Applications

• Ideal for use in automation systems for reliable power distribution
• Perfect for electronics applications requiring stable DC power supply
• Suitable for electrical equipment in industrial settings
• Used for powering mechanical components with high efficiency

Can it handle heavy loads with the Power Boost feature?

Yes, the Power Boost feature allows for reliable starting of difficult loads with up to 1.5 times the nominal current permanently.

Is it suitable for use in single-phase power systems?

Yes, the single-phase power supply is designed to work efficiently in various single-phase setups.

Will it provide stable DC output voltage in industrial applications?

Yes, the 24V DC output voltage ensures a stable power supply for industrial machinery and equipment.

Can this power supply be used in harsh industrial environments?

Yes, with 100% humidity dip coating protection, it is suitable for harsh industrial conditions.

Is it easy to install on DIN rail mounting systems?

Yes, the compact DIN rail module allows for easy and secure installation in DIN rail setups.

Datasheet 2320911

Instruction Sheet - 2320911

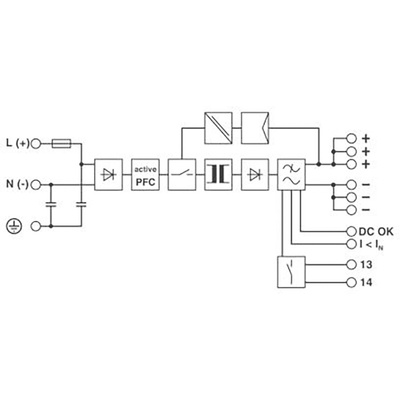

Line Drawing - 2320911
