2320241, Phoenix Contact DIN Rail UPS Uninterruptible Power Supply, 24V dc Output, ИБП

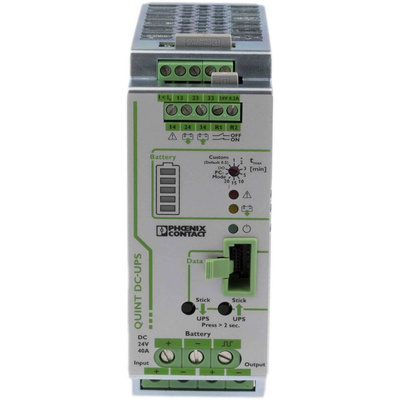

Phoenix Contact Uninterruptible Power Supply - Quint UPS, 2320241

Phoenix Contacts Quint UPS is an uninterruptible power supply that features QI technology. The integrated QI technology provides users with information on the charging state of the UPS, the QI also provides information on the energy storage remaining run time. This UPS module for 24 V DC with output currents that range from 5 to 40 A enables the user to create a custom solution which combines a power supply, a UPS module and energy storage.

Features & Benefits

• Automatic battery detection
• Tool-free battery replacement during operation
• Communication via an IFS interface
• Optimum use of the buffer time and preventative monitoring of the energy storage
• Fast and efficient battery charging
• Comprehensive signalling and parameterization
• Fast tripping of standard circuit breakers with SFB technology (selective fuse breaking)
• Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current permanently
• Dimensions are W47mm x H130mm x D125mm
• IQ Technology

Datasheet 2320241
