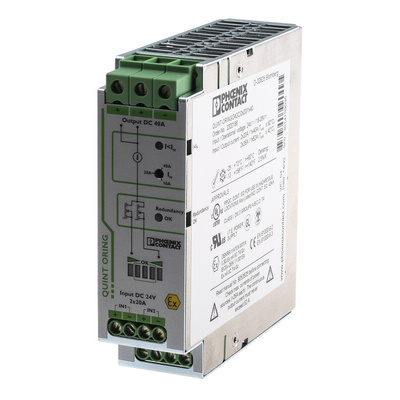

2320186, Phoenix Contact Redundancy module, for use with DIN Rail Unit

Phoenix Contact QUINT ORING Redundancy Modules

The Phoenix Contact QUINT ORING is a DIN rail mountable active redundancy module with ACB technology and monitoring functions. Using a redundancy module it is possible for two power supply units of the same type connected in parallel on the output side to increase performance or for redundancy to be 100% isolated from one another.

Features and Benefits

• Low-loss decoupling of power supply units connected in parallel
• Preventive function monitoring
• Auto Current Balance (ACB) technology
• MOSFET’s help save up to 70% energy
• Uniform load distribution helps to double the service life

Phoenix Contact Redundancy Module, DIN Rail Mount, 24V DC - QUINT-ORING/24DC/2X20/1X40 - 2320186

Reduce the risk of system downtime with this redundancy module from Phoenix Contact. It ensures the constant supply of electricity, even if one power supply fails. A component like this is essential in applications where operational reliability can't be compromised, such as security lighting systems.
This redundancy module decouples power supply units connected in parallel to ensure a short circuit in one of the devices doesn't affect the other. It continually monitors a system for the early detection of faults and checks not only power supply voltage but also the wiring and load current. As a result, you're ensured of symmetrical power loading that significantly increases the service life of your power supply units.
Choose this device to improve uptime and electrical reliability on automated production lines. It ensures efficient use of energy and keeps your workplace productive.

• Wide operating temperature range of -25°C to +70°C for safe industrial use
• Quick and easy to mount onto a DIN rail without specialist tools
• Screw terminals hold wiring securely without causing damage
• Conforms to EMC Directive 2014/30/EU (electromagnetic compatibility) so electromagnetic disturbance won't affect its performance
