2320034, Phoenix Contact QUINT-PS/24DC/24DC/5 DC-DC Converter, 24V dc/ 5A Output, 18 → 32 V dc Input, 120W, DIN Rail, Преобразователь

Phoenix Contact QUINT DC to DC Converters

Primary switched QUINT DC-DC converter with maximum functionality and SFB (Selective Fuse Breaking) technology.
QUINT DC-DC converters magnetically and quickly trip circuit breakers with six times the nominal current, for selective and cost-effective system protection. The high level of system availability is also ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.
DC-DC converters alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by electrical isolation.

Features and benefits:

• Power Boost allows reliable starting of difficult loads
• Preventive function monitoring indicates critical operating errors before they occur
• Output voltage regenerated even at the end of long cables
• Support conversion to various voltage levels
• Electrical isolation for setting up independent supply systems
• Transient surge protection
• Horizontal DIN Rail NS 35 mounting

Typical applications:

Ideal for use in many industries including, automotive, machine building, material handling, building automation, and so on. DC-DC converters are used in applications where unregulated DC voltages result in interference at the load.
Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, with protective coating, input: 24 V DC, output: 24 V DC/5 A

• Wide-range voltage input
• Galvanic isolation
• Reverse polarity protection
• Preventive function monitoring
• Reliable starting of difficult loads with POWER BOOST static power reserve
• Fast tripping of standard circuit breakers with dynamic SFB technology power reserve

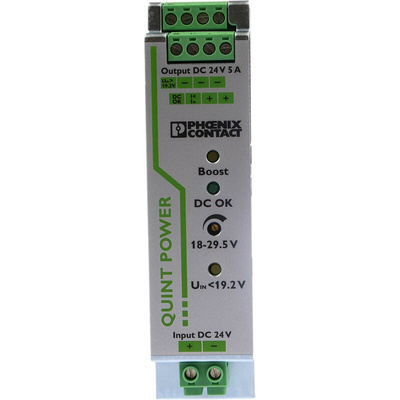

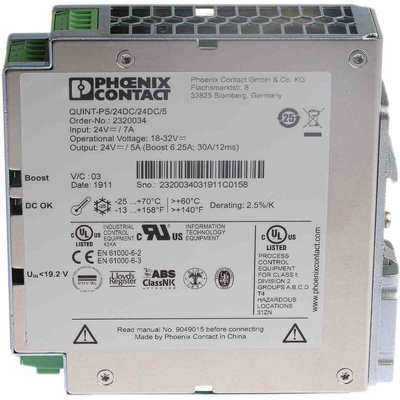

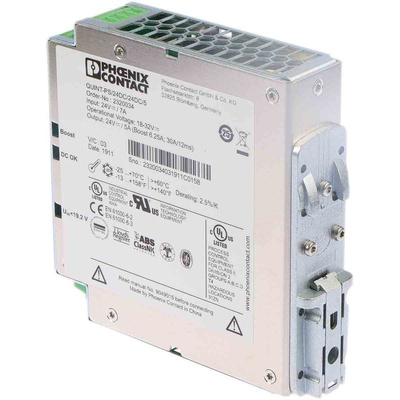

Phoenix Contact DC to DC Power Supply Converter, 24 V DC to 24 V DC - QUINT-PS/24DC/24DC/5 - 2320034

Monitor DC voltage precisely and in real-time with this DC to DC converter from Phoenix Contact. Its intuitive technology means the converter can instantly alter or amplify voltage to maintain power output at a stable 24 V DC.
The unit's built-in reverse polarity protection ensures sensitive electronic equipment isn't accidentally damaged in the event of the power supply polarity being reversed. Power burst technology means heavy electrical loads will always start up reliably, thanks to the converter's instantly acting power reserve. This component also provides protection against power surges to prevent electrical blow-outs.
The converter has a conformal coating to protect its internal wiring, so it's suitable to use in industrial conditions where chemicals and air contaminants are present. It's safe for mounting onto material-handling machinery and machine-building equipment.

• Input voltage range of 18 V DC to 32 V DC
• Isolation voltage of 1.5 kV DC
• Load regulation of ± 2%
• Operating temperature range of -25°C to +70°C
• DIN rail mount type
• Single output
• Output current of 5 A
• Output voltage of 24 V DC
• Output voltage adjustment range of 18 V to 29.5 V
• Power rating of 120 W
• Dimensions of 130 (length) x 32 (width) x 125 mm (depth)
