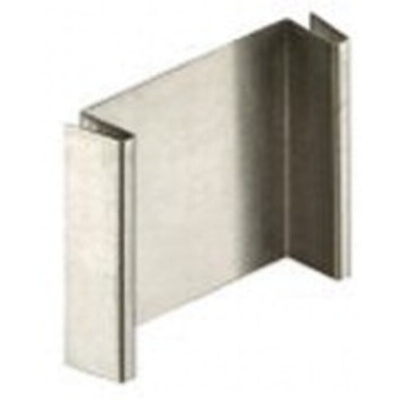

09140009965, Harting Fixing Plate, Han-Modular Series , For Use With Heavy Duty Power Connectors

Han® SC Module

To receive configured LWL SC cables
4-pin polarised
Mating cycles ≥500

Note

For fixing plate please see stock no. 739-7910 (supplied in a pack of 2)

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.
