Phoenix Contact QUINT DC to DC Converters
Primary switched QUINT DC-DC converter with maximum functionality and SFB (Selective Fuse Breaking) technology.
QUINT DC-DC converters magnetically and quickly trip circuit breakers with six times the nominal current, for selective and cost-effective system protection. The high level of system availability is also ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.
DC-DC converters alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by electrical isolation.
Features and benefits:
• Power Boost allows reliable starting of difficult loads
• Preventive function monitoring indicates critical operating errors before they occur
• Output voltage regenerated even at the end of long cables
• Support conversion to various voltage levels
• Electrical isolation for setting up independent supply systems
• Transient surge protection
• Horizontal DIN Rail NS 35 mounting
Typical applications:
Ideal for use in many industries including, automotive, machine building, material handling, building automation, and so on. DC-DC converters are used in applications where unregulated DC voltages result in interference at the load.
Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, with protective coating, input: 24 V DC, output: 24 V DC/5 A
• Wide-range voltage input
• Galvanic isolation
• Reverse polarity protection
• Preventive function monitoring
• Reliable starting of difficult loads with POWER BOOST static power reserve
• Fast tripping of standard circuit breakers with dynamic SFB technology power reserve

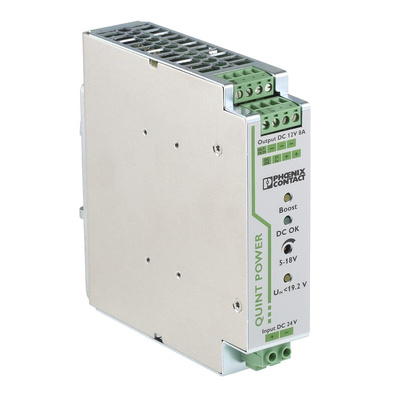

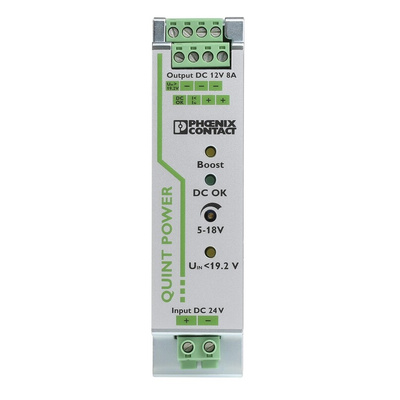

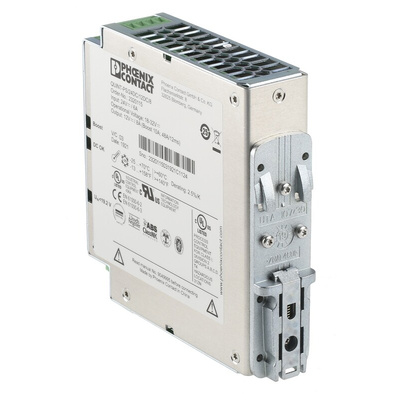

Phoenix Contact DC to DC Power Supply Converter, 24 V DC to 12 V DC - QUINT-PS/24DC/24DC/8 - 2320115
Maintain a stable 12 V output in electrical systems with this DC to DC converter from Phoenix Contact. It's approved for use in hazardous locations, making it ideal for harsh industrial environments.
The innovative technology that powers the converter allows it to intuitively alter input voltage to the desired output requirements. It's also able to amplify voltage to ensure no power loss occurs, even across long lengths of cable. A comprehensive signal monitoring ability alerts you to critical issues before they happen, preventing damage to electrical components.
A conformal coating protects the converter's electronic circuitry from moisture, dust and chemicals, as well as extreme temperatures. This means it's suitable for use in challenging situations, including machine manufacturing and the automotive industry.
• Input voltage range of 18 V DC to 32 V DC
• Isolation voltage of 1.5 kV DC
• Load regulation of ± 2%
• Operating temperature range of -25°C to +70°C
• DIN rail mount type
• Single output
• Output current of 8 A
• Output voltage of 12 V DC
• Output voltage adjustment range of 5 V to 18 V
• Power rating of 96 W
• Dimensions of 130 (length) x 32 (width) x 125 mm (depth)
Datasheet 2320115
Brochure
