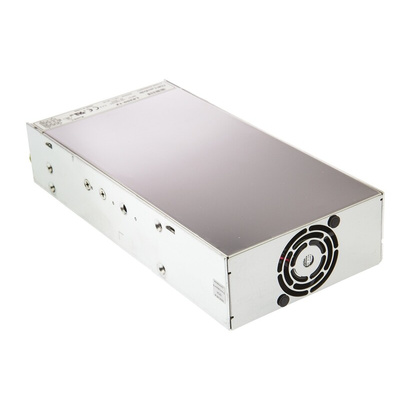

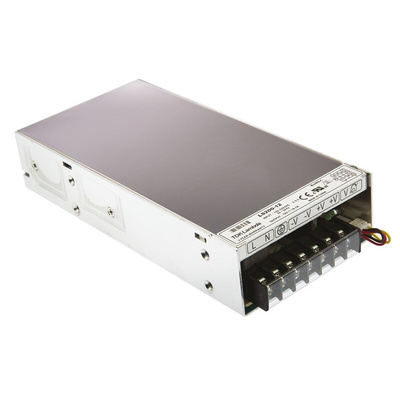

TDK-Lambda Switching Power Supply, LS200-12, 12V dc, 16.7A, 200W, 1 Output, 120 → 373 V dc, 85 → 264 V ac, Источник питания

TDK-Lambda Switch Mode Power Supply

The TDK-Lambda LS-200 series 200W single output AC to DC embedded switch-mode power supply has an output current rating of 16.7A at 12VDC. It has a universal input supply voltage rating from 85VAC to 264VAC and 120VDC to 373VDC. This switch-mode AC-DC power supply has a power factor correction, high efficiency and its 41mm height makes it suitable for use as a 1U rack-mount supply.
Note:
Part numbers suffixed with '/L' and 'U' channel versions do not have a cover or fan
Part numbers without suffix have cover and fan
MTBF to MIL-HDBK-217F
Power derates above 50°C

Features and Benefits

Compact design
Fan cooled
Green LED 'ON' indicator and remote sensing
High efficiency and MTBF
Low de-rating above 50°C (up to 60% load available at 70°C)
Overcurrent with constant current limiting
Overvoltage and overtemperature protection
Power factor correction
Remote ON/OFF signal
Suitable for indoor and outdoor enclosures

Applications

Automated service
Kiosks
LED lighting and displays
Light industrial
Test and measurement

Certifications

CSA60950-1 (cUL)
EN55011/EN55022-B
EN61000-3-2, -3 (typical PF 0.98/0.95) (1)
FCC-B
IEC60950-1 2nd edition
UL60950-1

Datasheet - LS200
