RSO-1205SZ, Recom DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 18 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min Temp, Преобразователь

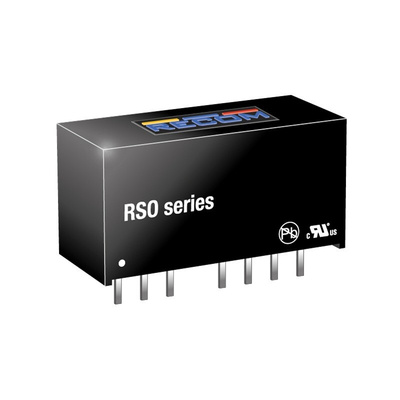

Recom 1W SIP Single/Dual Output Regulated Isolated DC-DC Converter - RSO Series

RSO series 1W single/dual output regulated DC to DC converters with 4:1 input and high power density. These 1W single/dual output regulated DC to DC converters have On-Off control and 3kVDC isolated versions are ,medically approved.

Ultra-wide 4:1 input voltage range
Regulated outputs
Low noise
No external capacitor needed
Remote On/Off Control
Continuous short circuit protection
UL94V-0 package material
SIP-8 package

Note

Part numbers suffixed with 'H3' have 3kVDC isolation and are medically approved
Power derates above 75°C operating temperature
MTBF to MIL-HDBK-217F (25°C).

Standards

EN-60950-1
EN-60601-1 (medically approved, part numbers suffixed with 'H3' only

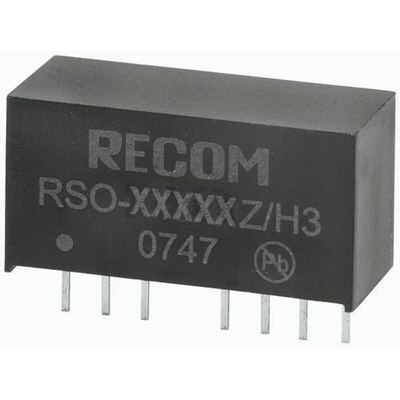

RECOM DC-DC Converter, Single Output, SIP-8 Package - RSO Series - RSO-1205SZ

Want a fuss-free power solution? Reach for this DC-DC converter from RECOM. You can trust it to take inputs from 4.5 to 18V DC and deliver a 5V DC output, so you don't have to worry about equipment damage caused by incompatible supplies. As the converter has a rating of 1W, it's suitable for use with low-power applications. A broad operating temperature range between -40°C and +85°C means it gets on with the job reliably, even in demanding industrial environments.

• Efficiency rating between 73% and 78% for low heat output, so there's no need for a fan or heat sink
• Isolation voltage of 1kV DC helps keep people and equipment safe
• Load regulation of ±0.5%, so it provides a consistent power supply to your appliance
• Continuous short-circuit protection guards against damage from overcurrent
• Low-noise design to reduce interference with other components or equipment

Applications

• Factory equipment
• Consumer electronics
• Automotive technology
• Lighting systems

How do I install this DC-DC converter?

This is a through-hole mounting device, so you can easily connect it directly to your PCB.
