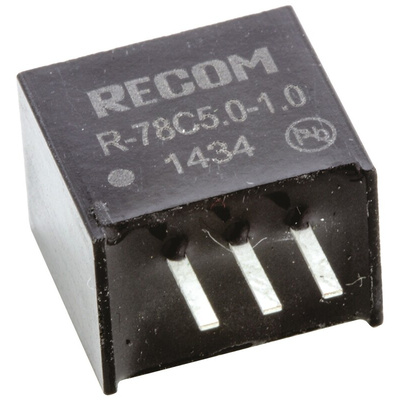

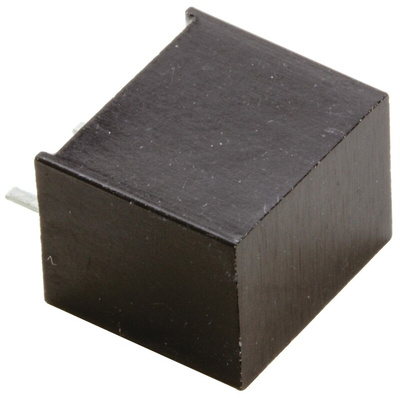

R-78C5.0-1.0, Recom Switching Regulator, Through Hole, 5V dc Output Voltage, 8 → 42V dc Input Voltage, 1A Output Current, 1, Импульсные стабилизаторы

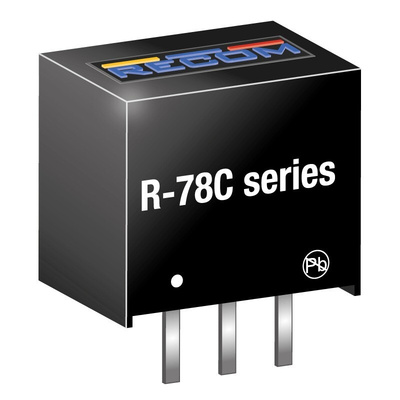

R-78Cxx 1.0L Series Single Output DC/DC Converter

The Recom R-78Cxx series are highly efficient, non-isolated switching regulators are ideally suited to replace the 1 Amp 78xx linear regulators, as well as being pin compatible.

The convertor has a high-voltage input range and there is no need for heat sinks, due to little energy being wasted. It has a wide input range with short circuit protection and thermal shutdown.

Features and Benefits

• Low profile
• Pin compatible with LM78xx linear regulators
• High efficiency, non-isolated, no need for heatsinks
• Fully protected for short circuit
• Positive to negative convertor
• Low ripple and noise

Note

MTBF to MIL-HDBK 217F
Power derates above 68°C

Standards

General safety: EN 60950-1:2006 + A11:2009 + A1:2010
Standby power: EN62301:2005
