RS PRO Air Drill 10mm Angled, 1/4in Air Inlet (BSP) , 1700 1/min

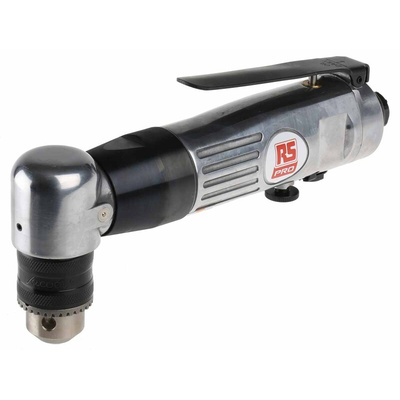

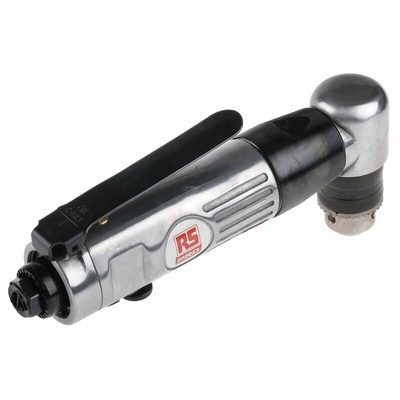

RS PRO 10 mm Angled Air Drill

Compact, no charge required, last for many years and the competitive price comparing to electric tools. This is a quick overview of Air Drill, but there is much more to explore.

We are proudly introducing our own branded RS PRO Angled Air Drill characterising of lightweight (only 0.9 kg), which makes a difference if the tasks require to make many holes.

Attractive aluminium construction with speed up to 1700 rpm is ideal for drilling, reaming and honing.

To be able to drill, you need a reliable air compressor, which is hugely important for the safe and satisfactory operation of your Air Drill. You can explore some of our air tools from the leading brands DeWALT, SIP, Welding Star or CIF below.

182-8736 Welding Star 1.5 HP 24 L Air Compressor, 114 psi

386-7828 CIF 135 W 1 L Air Compressor, 6 bar, 14.5 kg
386-7834 CIF 340 W 6 L Air Compressor, 8 bar, 21 kg
175-1191 DeWALT 0.4 HP 9.5 L Air Compressor, 9 bar, 11 kg
175-1190 DeWALT 0.4 HP 9.5 L Air Tool Accessory, 9 bar, 11 kg

The Angled Air Drill with average air consumption of 4cfm / 113l / min making the Pistol Drill a tool, which can be used in your garage or by professional users.
A significant advantage of Air Drills comparing to traditional Electric Drills is that they are straightforward construction, meaning fewer internal components and when linked with a quality air compressor provide consistent and powerful results.

Angled Air Drills also have lower vibrations (our model has 1.5 m/s²) than electric drills, which makes them more user-friendly and safer to use.

Features and Benefits

• The Air Drill has a rear exhaust through handle

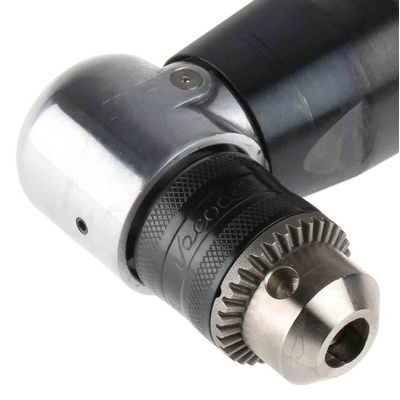

• Jacobs Keyless Chuck for quick drill replacement inside the chuck and tighten the chuck around it by twisting


• Powerful Air Motor


• Positive trigger action


• Sound of 87 dBA


• Average air consumption of 4cfm / 113 l/min


• The lightweight construction of 0.9 kg


• Maximum permissible operating pressure 90 psi (6.2 bar)


• Recommended lubrications 10 Weight SAE Oil


• Impressive sped up to 1700 rpm


• Angle head for easy access

Applications

Reversible Air Drill is easy-to-use and without any doubt will speed up your work. The Angled Air Drill is ideal for assembly work, including:

• Cabinet work


• Window frame manufacture


• Puncture repair


• Reaming


• Honing

Frequently asked questions

How do I remove the chuck from my Air Drill?

This exercise is quite simple. Hold the drill down firmly, insert the chuck key and hit sharply with the mallet (turning it counter clockwise) to loosen the drill chuck from the threaded spindle. You might repeat this procedure a couple of times to reduce the chucks to unscrew the old drill chuck finally.

Why RS PRO?

RS PRO is our family brand to go-to and brings you a wide range for high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we are confident of their exceptional quality, which means you can be convinced too.
