ED06D5, Sensata / Crydom ED Series Solid State Relay, 5 A Load, DIN Rail Mount, 48 V dc Load, 15 V dc Control, Реле

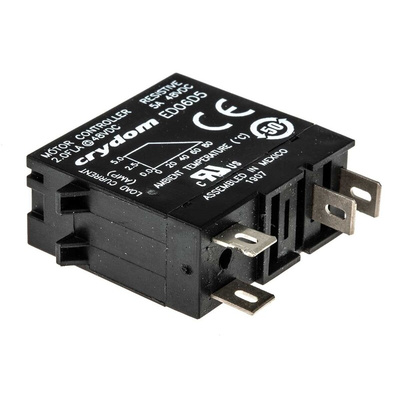

Sensata | Crydom Solid-State Relay, 5 to 15V DC Control Voltage Range, 5A Rated Load Current - ED Series - ED06D5

Need a reliable way to control the circuits in your network? Take charge with this solid-state relay from Sensata | Crydom. When this unit receives electrical signals, it'll convert them into optical ones before firing them at a photosensitive transistor. From there, it'll send the signals onward to other components to switch them on or off. Its housing is made from impact-resistant PBT, so it can take knocks and bumps without damage. Units like this one are a key part of battery management systems, as well as lighting and medical equipment.

Features & Benefits

• Operating voltage range of 1 to 48V DC for use in low-power applications
• Compact dimensions of 29 (L) x 12.7 (W) x 37.4mm (H) for installation in tight spaces

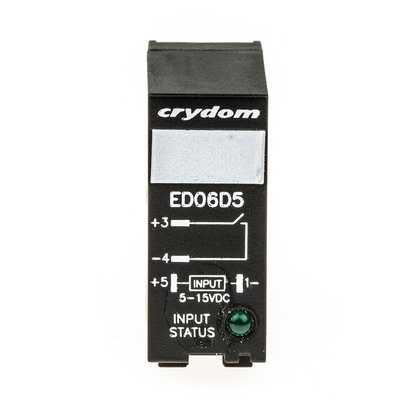

• LED indicator for easy status monitoring
• Designed for mounting on a DIN rail for simple installation

Can I use this unit in challenging environments?

Yes, thanks to its wide operating temperature range between -30ºC and +80ºC, it can stand up to use in tough environments.

Approvals

cUL, IEC, CE

DC Switching
