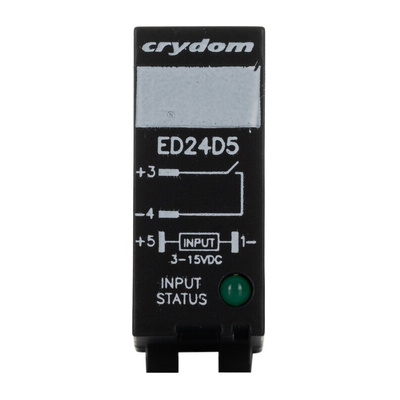

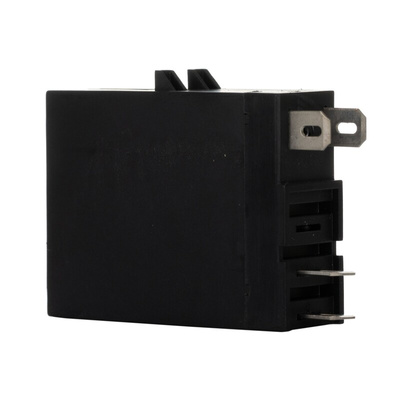

ED24D5, Sensata / Crydom ED Series Solid State Relay, 5 A Load, DIN Rail Mount, 280 V rms Load, 15 V dc Control, Реле

Plug In, DIN / PCB Mount - ED Series

The zero voltage switching ED series from Crydom offers a AC output solid state relay series in an industry standard EMR plug in package. This enables the device to be both mounted onto a PCB (via RS stock number 740-1365) or a standard DIN rail (via RS stock number 740-1368).

AC output solid state relay in an industry standard EMR plug in package
Ratings of 3 and 5 Amps
Load voltage range of 24 → 280 Vac
Fits standard DIN rail and PCB mountable sockets
LED input status indicator
AC or DC control voltage
cUL recognised, IEC rated, CE & RoHS compliant
Horsepower rated

Approvals

cUL, IEC, CE, CCC & RoHS Compliant

Sensata | Crydom Solid-State Relay, 150mA to 5A Load Current Range, SPST Contact Configuration - ED Series - ED24D5

Use this solid-state relay from Sensata | Crydom to switch loads in your industrial control system. It works by converting an electrical input into an optical one, then firing the transmission to its built-in photosensitive transistor, which transmits the energy to other components. This device has no moving parts, so wear and tear is minimal for a longer service life. Relays like this one play a vital role in robotics, data acquisition and instrumentation.

Features & Benefits

• Polyamide housing is resistant to heat and wear
• LED status indicator for ease of monitoring and troubleshooting
• Designed for mounting on a DIN rail for quick and simple installation
• Light weight of 30g to place minimal strain on your mounting surface

Can I use this unit in challenging conditions?

Yes, you can. This relay has a wide operating temperature range between -30°C and +80°C, so it's suitable for use in harsh environments.

What are the dimensions of this unit?

This unit has compact dimensions of 29 (L) x 12.7 (W) x 37.4mm (H), so it will take up minimal space in your setup.

Approvals

cUL, IEC, CE & RoHS Compliant

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

ED Series Zero Voltage/Random Turn On Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Instruction Sheet - ED24D5

Line Drawing - ED24D5
