PCBSED, Sensata / Crydom ED Series 5 Pin 250V PCB Mount Relay Socket, for use with ED Series, Контактная колодка

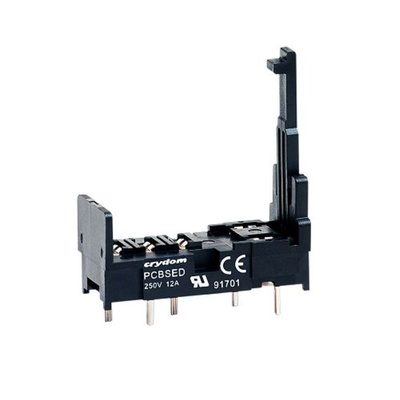

Sensata | Crydom Relay Socket, 12A Current Rating, 5 Contacts - ED Series - PCBSED

When you need a simple way to integrate your relay into your system, make the switch to this relay socket from Sensata | Crydom. It connects to your PCB, providing a handy electrical interface between relay and board. This eliminates the need to wire your device directly to your circuit, saving you time and effort during installation. You'll find this component used in plant automation and medical applications.

Features & Benefits

• Current rating of 12A for use in heavy-duty applications
• Robust thermoplastic housing is resistant to impact and corrosion
• Through-hole mounting for a secure, vibration-proof connection to your PCB
• Compact dimensions of 32.5 (L) x 14 (W) x 36.5mm (H) to maximise space on your board

Is this relay socket safe to handle?

Yes, this relay socket has an IP10 rating, which means it's touch-safe and protected against objects larger than 50mm in size.

Which relays can I use this socket with?

For ease of assembly, the unit is designed for use with SSRs from Sensata | Crydom's ED series.

Approvals

UL, CE

DC Switching

Declaration of Conformity 2014/35/EU

Sensata | Crydom ED Series Sockets - Datasheet

Datasheet - PCBSED

Instruction Sheet - PCBSED

Line Drawing - PCBSED
