DRSED, Sensata / Crydom ED Series 5 Pin 250V DIN Rail Relay Socket, for use with ED Series, Контактная колодка

Plug In, DIN / PCB Mount - ED Series

The DC switching ED series from Crydom offers a DC output solid state relay series in an industry standard
EMR plug in package. This enables the device to be both mounted onto a PCB (via RS stock number 740-1365) or a standard DIN rail (via RS stock number 740-1368).

DC output solid state relay in an industry standard EMR plug in package
Ratings of 5 Amps
Load voltage range of 1 → 48 and 1 → 80 Vdc
Fits standard DIN rail & PCB mountable sockets
LED input status indicator
AC or DC control voltage available
cUL recognised, IEC rated, CE & RoHS compliant
Motor controller rated

Approvals

cUL, IEC, CE, CCC & RoHS compliant

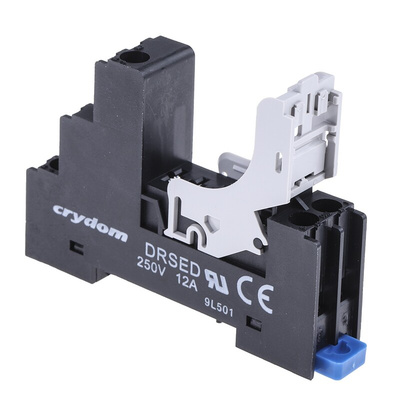

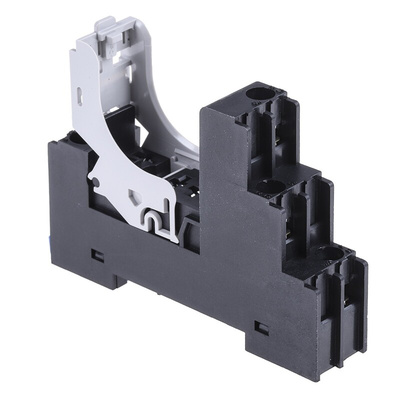

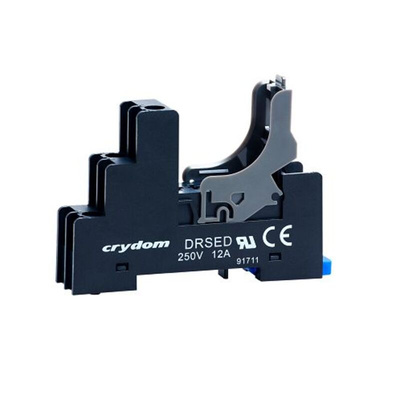

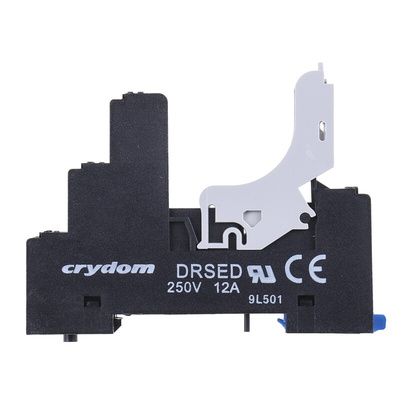

Sensata | Crydom Relay Socket, 12A Current Rating, DIN Rail Mounting - ED Series - DRSED

Use this socket from Sensata | Crydom to securely mount relays in your electrical circuits. It allows you to plug in and remove the switch from the control or output networks and minimises the risk of a wrong connection, preventing downtime for increased productivity. Thanks to its thermoplastic housing, this unit can withstand impact and heat, making it suitable for use in harsh environments. It's designed for DIN rail mounting, so it's simple to install without the need for complex tools. You'll find this component used in plant automation systems.

• IP10 rating means it's protected from objects larger than 50mm in size
• Compatible with all relays in the ED series for versatility
• Current rating of 12A for use in high-current applications

How do I connect wires to this socket?

This socket has screw terminals to ensure simple and secure wiring.

What's the voltage rating of this relay socket?

This relay socket has a voltage rating of 250V AC/DC, making it suitable for use in low-voltage systems.

Approvals

UL, CE

DC Switching

Datasheet

Declaration of Conformity 2014/35/EU

Installation Sheet - ED

Line Drawing - DRSED
